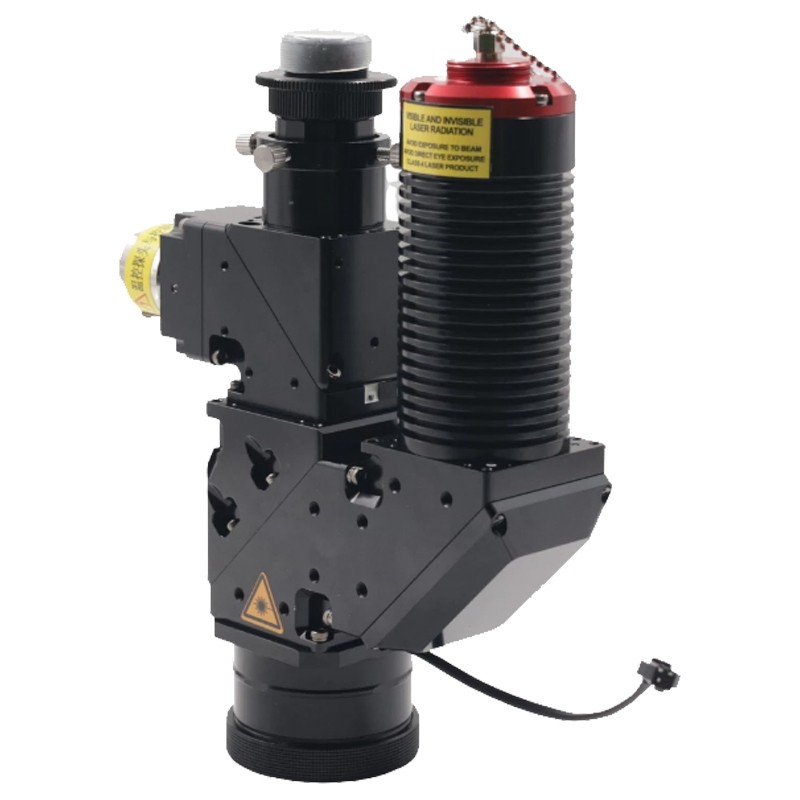

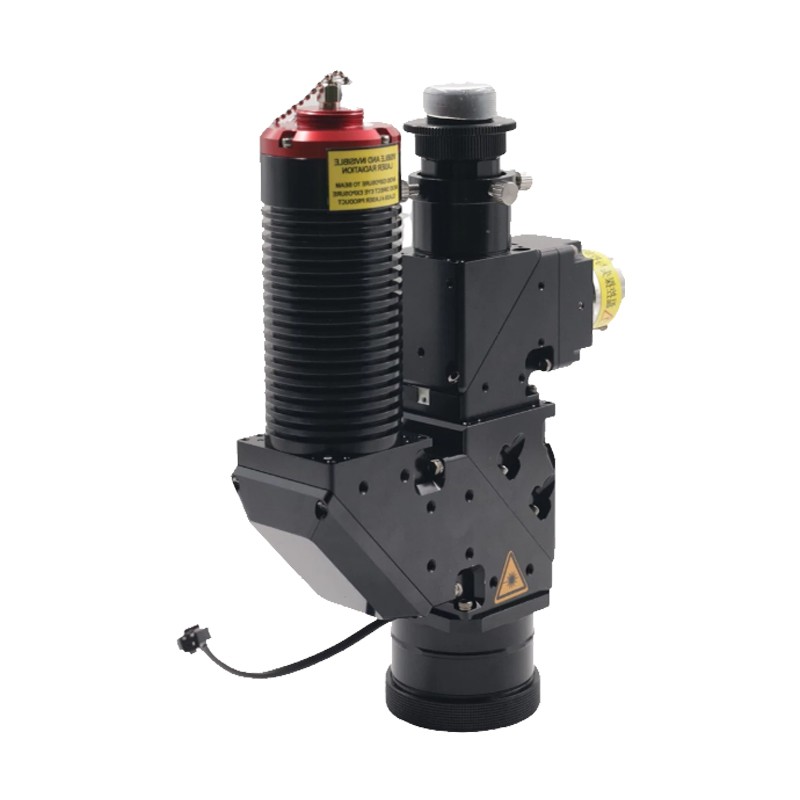

Coaxial thermometry vision laser focusable welding
Product features
Positioning of the workpiece to be welded with the system's coaxial CCD camera and monitoring device.
The laser control unit receives the positioning completion signal and the laser irradiates the welding area locally for a set period of time.
The use of composite lens structure, effectively eliminating the halo, halo and other focusing defects brought about by the focusing of the laser single lens.
Semiconductor and YAG laser welding systems for fiber coupling.
Spot size can be adjusted at the same height with the manual focus ring.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser soldering.
Plastic and other non-metallic cladding.
Process point temperature feedback welding.
Product specifications
序号 Number | 通光孔径mm Aperture of aperture | 光纤接口 Aperture(mm) | 照明 llumination | 适用波长nm Applicable wavelength | 聚焦焦距mm Focusing focallength | 视场范围mm Field of view | CCD接口 CCD interface | 测温模块接口 Temperature measurement module interface |
1 | ≤40 | D80 | 400-700 | 915/980 | 40-700 | 10-20 | C/CS | selectable |
2 | ≤40 | SMA905 | 400-700 | 915/980 | 40-700 | 10-20 | C/CS | selectable |
