Laser Soldering Process in 5G Communication and Optical Module Processing

With the continuous advancement of 5G communicated technology, the demand for high-quality optical modules is also increasing. In 5G communication and optical module processing, it is necessary to join various materials together, such as fiber optic connectors, optical chips, filters, etc. Laser soldering technology offers advantages in meeting the welding requirements for these diverse materials.

First, let’s explore the application of laser soldering technology in optical module welding. As a high-precision welding equipment, laser soldering machines can achieve precise soldering of internal welding points in optical modules. Through the focusing and control of the laser beam, rapid heating and precise positioning of the welding points can be achieved, ensuring accuracy and stability in the soldering process. Compared to traditional manual soldering and conventional welding equipment, laser soldering machines offer higher welding speeds and better welding results, meeting the high demands of optical modules.

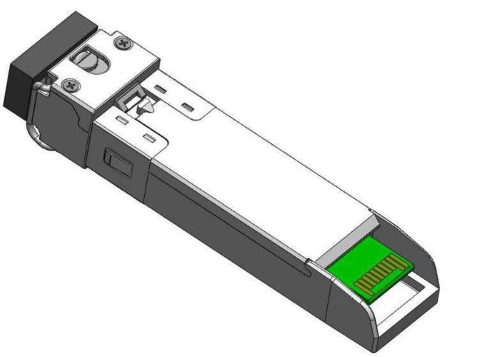

Optical Module Product Diagram

Secondly, an optical module consists of optoelectronic devices, functional circuits, and optical interfaces, and its role is to achieve photoelectric conversion. During the welding process of optical modules, laser soldering technology can be applied to join various materials, including metals, alloys, plastics, etc. At the same time, laser soldering technology offers more stable and reliable welding strength, as the process is less affected by factors such as the operator's skill level, temperature, and pressure.

Diagram of 5G Communication Application Scenarios

Finally, the application of laser soldering technology in 5G communication cannot be overlooked. In 5G base stations, antenna connectors are one of the key components, and their welding quality directly affects the performance and stability of the antenna. Laser soldering technology can be used to weld antenna connectors, achieving fast, precise, and reliable welding, thereby improving antenna quality and production efficiency. In 5G communication equipment, the welding of electronic components is a critical step. Laser soldering technology can be applied to weld various electronic components, such as resistors, capacitors, and inductors, enabling fast, accurate, and reliable welding, which enhances the performance and stability of the equipment.

Advantages of Constant Temperature High-Speed Laser Soldering System

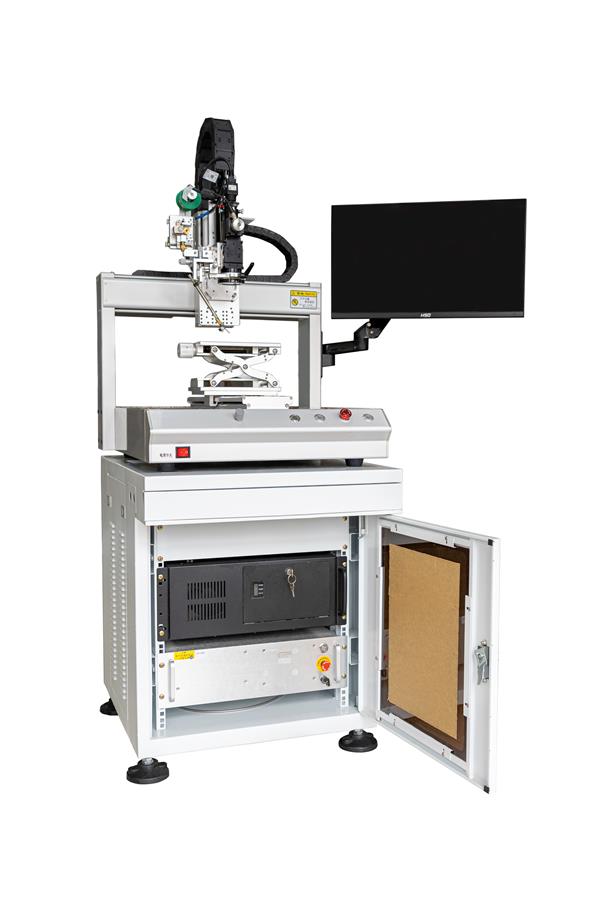

Diagram of Songsheng Optoelectronic Desktop Constant Temperature Soldering System

The Songsheng Optoelectronics Constant Temperature Soldering System achieves high-speed soldering of workpieces through rapid laser beam deflection. Its Integrated coaxial CCD positioning system automatically recognized the workpiece, enabling highly efficient, high-precision automated production.

1.Coaxial CCD Imaging System: Meets visual positioning requirements and effectively ensures product yields.

2.Coaxial Alignment of Laser, CCD, and Temperature Measurement Optical Paths: This innovative three-in-one coaxial design solves the industry challenge of muti-optical path alignment and eliminates complex calibration.

3.Proprietary Temperature Feedback System: Enables real-time monitoring and adjustment of soldering point temperature, with live display of soldering temperature curves to ensure consistent quality.

4.Fully Enclosed Scientific Design: The System’s sealed structuring maintains air cleanliness around processed components, effectively preventing oxidation on surfaces of precision devices.

The laser beam of Songsheng Optoelectronics' constant-temperature laser soldering system features high energy density and precise control capability, enabling the heat-affected zone to be confined to a minimal range. This means that during the soldering process, the impact on surrounding components and materials is significantly reduced, which helps protect the circuit board and other sensitive elements. In 5G communication and optical module processing, circuit boards and other sensitive components must be safeguarded to prevent damage. The laser soldering process minimizes the impact on adjacent components and materials, thereby ensuring the protection of these parts.

In summary, laser soldering technology holds broad application prospects in 5G communication and optical module processing. Its advantages include the ability to weld diverse materials, high soldering speed, strong weld strength, and a reduced heat-affected zone. These benefits contribute to improved production efficiency, enhanced product quality, and the protection of sensitive components, thereby offering additional advantages and possibilities for 5G communication and optical module processing.
