Can Laser Soldering Be Used for Ceramic Materials? ​

Laser soldering technology can achieve reliable connections for ceramic materials, particularly in the field of electronic ceramics, where it has been widely adopted. Below is a detailed analysis of its technical feasibility, application scenarios, and challenge:

1.Technical Feasibility of Laser Soldering for Ceramic Materials

Welding Characteristics of Ceramic Materials

Ceramic exhibit properties such as high melting point, low electric conductivity, and brittleness. Traditional welding methods (e.g., soldering iron welding, reflow soldering) are prone to causing thermal stress connection or material cracking. Laser soldering, with its localized heating and non-contact operation, effectively controls heat input and minimizes damage to ceramics.

Welding Methods

Direct Welding: The laser beam directly acts on the interface between the ceramic and the solder. By precisely controlling the energy, the solder is melted and wets the ceramic surface. This method is suitable for high-precision applications, such as connecting ceramic substrates to metal pins.

Indirect Welding: A metallization layer (e.g., silver paste, copper coating) is first applied to the ceramic surface, and then laser heating is used to achieve soldering. The metallization layer improves the electrical conductivity and wettability of the ceramic, enhancing welding strength. This method is commonly used for applications such as hermetic connections in ceramic packaging.

2.Typical Application Scenarios

Electronic Ceramic Packaging

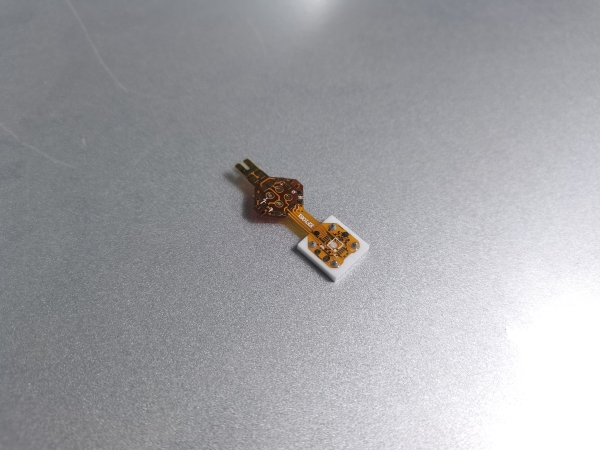

Ceramic Substrates: Used in high-power LEDs, IGBT modules, and other devices with high heat dissipation requirements. Laser soldering enables efficient connections between ceramics and metal heat sinks.

Ceramic Packaging Housings: In sensors and integrated circuits, laser soldering ensures the sealing and reliability of the packaging.

Optoelectronic Device Manufacturing

Welding of Ceramic Substrates and Metal Electrodes: For example, in optical communication modules, laser soldering connects ceramic bases to metal pins without damaging heat-sensitive components.

Ceramic Capacitor Soldering: Laser soldering enables automated welding of metal pins at both ends of cylindrical ceramic capacitors (as demonstrated in patented equipment cases).

Special Material Connections

Welding of Dissimilar Materials (Ceramics and Metals): In medical devices and aerospace applications, laser soldering achieves reliable bonding between ceramics and materials such as titanium alloys and stainless steel.

3. Technical Challenges and Solutions

Ceramic Surface Pretreatment

Challenge: Ceramic surfaces exhibit strong inertness, requiring chemical treatments (e.g., activators) or physical roughening (e.g., laser etching) to improve wettability.

Solution: Employ metallization layers (e.g., electroless nickel plating) or nano-coating technologies to enhance the bonding strength between solder and ceramics.

Thermal Stress Control

Challenge: The low thermal expansion coefficient of ceramics makes them prone to cracking due to temperature gradients during welding.

Solution: Optimize laser parameters (e.g., pulse width, power) and adopt preheating or gradual cooling processes to minimize thermal shock.

Solder Material Selection

Challenge: Conventional tin-lead solder exhibits poor affinity with ceramics.

Solution: Use high-temperature solder alloys containing elements such as silver or bismuth (e.g., Sn-Ag-Cu alloys), or incorporate flux to improve wettability.

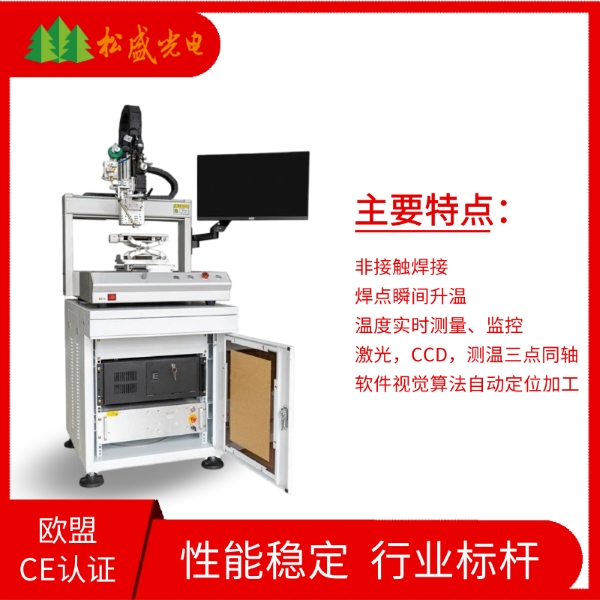

Constant-Temperature Laser Soldering System

Key Featuring:

Non-Contact Processing

Instantaneous Spot Heating

Real-Time Temperature Measurement & Monitoring

Coaxial Integration of Laser, CCD, and Thermometry

Automated Positioning via Software Visual Algorithms

Conclusion

Laser soldering technology has become a critical method for joining ceramic materials, thanks to its high-precision energy control and adaptable process compatibility. It demonstrates significant advantages, particularly in electronics and optoelectronic device applications. Although challenges such as surface treatment and thermal stress management persist, domestic equipment manufacturers are gradually overcoming these bottlenecks through technological innovations (e.g., metallization pretreatment, closed-loop temperature control systems), promoting the industrial adoption of ceramic laser welding. In the future, with advancements in ultrafast laser and in-situ monitoring technologies, ceramic laser welding is expected to evolve further toward higher reliability and intelligent automation.
