Brief Discussion the Main Advantages and Applications of Laser Precision Cutting

Laser precision cutting is a process that utilizes laser technology and CNC technology to achieve high-precision cutting of materials. This technique employs a high-power density laser beam to irradiate the material being cut, rapidly heating it to vaporization temperature and causing it to evaporate, forming holes. As the beam moves relative to the material, these holes continuously form a very narrow cut, thereby completing the cutting process.

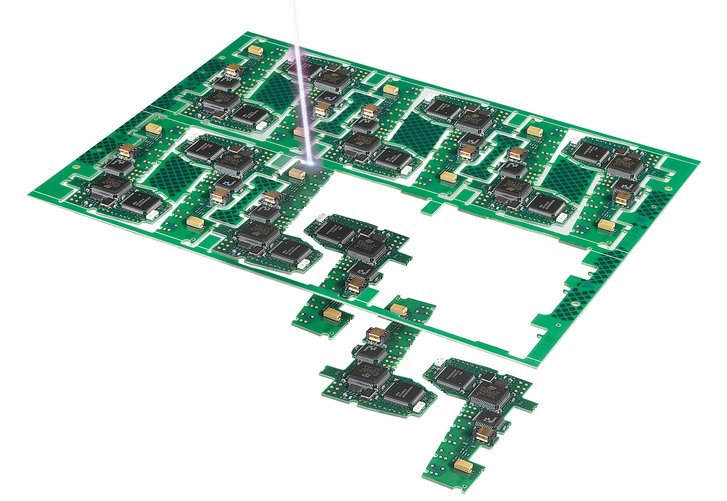

Precision Laser Cutting Technology Applied in PCB Laser Depaneling

Compared with traditional cutting methods, laser cutting offers numerous advantages. It enables high-precision manufacturing with tight tolerances, reduces material waste, and supports a wide variety of processing materials. The precision laser cutting process can be widely applied across various manufacturing applications and has become a valuable asset in the automotive industry, producing complex and thick parts from diverse materials—ranging from hydroformed 3D shapes to airbags. In the precision electronics industry, it is used for finishing metal or plastic components, housings, and circuit boards. From processing workshops and small-scale shops to large industrial facilities, laser cutting provides manufacturers with numerous benefits, which is why precision laser cutting is widely adopted.

Excellent Precision

The precision and edge quality of materials cut with lasers are superior to those processed by traditional cutting methods. Laser cutting utilizes a highly focused beam that acts as the heat-affected zone during the cutting process, preventing extensive thermal damage to adjacent surfaces. Furthermore, the cutting process employs high-pressure gas (typically CO₂) to eject molten material, removing narrower kerfs and resulting in cleaner processing. This enables smoother edges for complex shapes and intricate designs. Equipped with computer numerical control (CNC) capabilities, laser cutting machines can be automatically guided by pre-programmed machine instructions. The use of CNC-controlled laser cutting systems minimizes the risk of operator error, producing components with higher precision, greater accuracy, and tighter tolerances.

Faster Cutting Speed

The time spent setting up and operating manufacturing equipment increases the overall production cost per workpiece. Adopting laser cutting methods can reduce the total lead time and the overall cost required for production. With laser cutting, there is no need for mold changes or setup adjustments between different materials or material thicknesses. Compared to traditional cutting methods, laser cutting significantly reduces setup time, as it relies more on machine programming than on material loading. Additionally, completing the same cut with a laser can be up to 30 times faster than using traditional sawing methods.

Reduced Material Costs

By utilizing laser cutting methods, manufacturers can significantly minimize material waste. The focused beam employed in the laser cutting process produces a narrow kerf, which reduces the size of the heat-affected zone and decreases the amount of material rendered unusable due to thermal damage. When working with flexible materials, deformation caused by mechanical tools further increases the volume of unusable material. The non-contact nature of laser cutting eliminates this issue entirely. The laser cutting process enables higher precision cuts with tighter tolerances and reduced thermal damage to the material, allowing parts to be nested more closely together on the raw material sheet. This optimized nesting reduces material waste and, over time, lowers overall material costs.

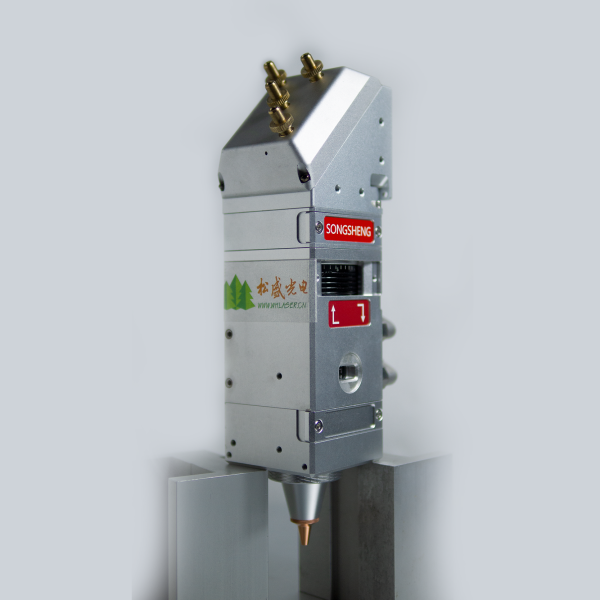

Pictures of UV/Green Laser Precision Cutting Heads

Songsheng Optoelectronics’ high-power UV/green laser precision cutting heads are primarily used in the PCB industry for laser depaneling applications, such as UV laser cutting of FR4, reinforcement steel sheets, FPCs, rigid-flex boards, and glass fiber boards.

Ultra-thin metals refer to metallic materials with a thickness below 0.2mm, such as copper foil, aluminum foil, stainless steel, and alloy materials. UV laser cutting processing achieves burr-free, low-carbon, and deformation-free results, enabling precision cutting. It is commonly used in industries such as military components and photovoltaic copper foil.

Main Features:

• Adjustable collimation in XY directions

• Precision manual focusing mechanism

• Full-body water cooling system

• Fully sealed internal structure

• Drawer-style design for easy replacement

• Multi-element diffraction-limited design

• Equipped with nozzle components

• Optional coaxial vision module

Conclusion

The semiconductor industry utilizes laser cutting in electronics manufacturing, enabling the processing of composite materials such as silicon, gemstones, and complex components. Laser cutting is also widely adopted in the medical sector for applications including the production of medical devices and equipment, precision tube cutting, and surgical procedures requiring sterile and exact incisions. The minimal heat-affected zone reduces material waste, thereby lowering overall costs. The non-contact nature of the process mitigates the risk of workplace injuries and accidents. Faster programming and setup times for laser cutting enhance production flexibility while significantly shortening lead times.
