Advantages of Laser Soldering in Electronic Components, Semiconductors, and Microelectronics

The 21st century has witnessed rapid technological advancement, and in this era of high-speed development, China has risen to master multiple world-leading technologies. People now lead lives vastly different from before, with smartphones, power banks, tablets, and laptops becoming daily necessities and among the most in-demand terminal products in the market. With the refinement and widespread adoption of 5G technology, the demand in areas such as 5G smartphones, wearable devices, drones, and service robots will continue to grow. The demand for semiconductors and microelectronics will also increase alongside the rising demand for products in the 3C market. Songsheng Optoelectronics is here to introduce the advantages of laser soldering in electronic components, semiconductors, and microelectronics. Let’s take a look!

High-Precision Soldering

Micron-Level Soldering Joints: Laser can be focused to an extremely small spot diameter, typically achieving micron-precision. This enables precise soldering of tiny solder joints, such as chip pin soldering and camera module soldering, ensuring accuracy and consistency of the solder joints. It meets the demand for high-density, miniaturized electronic component soldering in the electronics industry.

Complex Structure Soldering: Through precise optical path systems and motion control systems, lasers can be accurately directed to the required soldering locations. This offers unique advantages for soldering complex structural components and in confined spaces. For instance, in soldering complex structures such as FPC boards and multi-layer PCB boards, it can avoid impacting surrounding components.

Minimal Damage to Component

Localized Heating: Laser soldering employs a localized heating method with rapid temperature rise. During the soldering process, the temperature increases in the areas surrounding the solder joint is limited, resulting in minimal thermal impact on the electronic components themselves. This effectively prevents issues such as performance degradation or damage caused by overheating. It is particularly suitable for soldering temperature-sensitive electronic components, such as thermal and photosensitive elements.

Non-Contact Soldering: The laser soldering process does not require direct contact with the workpiece, eliminating mechanical pressure on the components. This avoids problems such as damage or deformation caused by pressure and reduces the likelihood of static electricity generation from contact. It also mitigates the potential hazards of static electricity to electronic components, making it especially critical for soldering static-sensitive electronic devices.

High-Quality Solder joints

Reduced Thermal Stress: Due to the small heat-affected zone, the thermal stress between the solder joint and the substrate after welding is also minimal. This helps improve the reliability of the solder joint and the overall performance of the electronic device, reducing the risk of solder joint fatigue, cracking, and other issues caused by thermal stress.

High Solder Joint Reliability: Laser welding offers stable and precisely controllable energy, enabling the solder to fully melt and form a tight bond with the workpiece. The resulting solder joint exhibits a fine microstructure, high welding strength, and excellent reliability, effectively extending the service life of electronic devices.

Avoidance of Welding Defects: Compared to traditional welding methods, laser soldering significantly reduces the occurrence of defects such as cold solder joints, false soldering, and missed soldering. This ensures consistent and stable welding quality.

High-Efficiency Welding

Rapid Heating and Cooling: Laser energy is highly concentrated, enabling the solder to melt and complete the welding process in a short time. The fast heating and cooling rates significantly reduce welding time and improve production efficiency.

Ease of Automation Integration: Laser soldering systems can be integrated into automated production lines, enabling automated welding. This reduces manual operation time and labor intensity while enhancing production consistency and stability, making it suitable for large-scale manufacturing.

Strong Process Adaptability

Excellent Material Compatibility: Laser soldering can directly weld insulated conductors without the need to strip the insulation layer beforehand. It is also capable of welding different materials with significant differences in physical properties, such as ceramics and metals.

Ability to Weld Ultra-Fine Pitches: Laser soldering can meet the growing demand for higher packaging integration by achieving smaller lead pitches, aligning with the trend of miniaturization and high-density integration in electronic devices.

Environmentally Friendly and Energy-Efficient

No flux is required during the laser welding process, eliminating pollutants such as flux volatiles. This maximizes the service life of electronic components and reduces environmental impact, aligning with the development trend of green manufacturing.

Laser welding uses a laser beam as the heat source, characterized by high energy density, rapid processing speed, and localized processing capabilities. It is suitable for welding precision components such as integrated circuits and semiconductor devices.

Songsheng Optoelectronics Laser Constant Temperature Soldering System

Comprising a real-time temperature feedback system, CCD coaxial positioning system, and semiconductor laser, the system features an innovative PID online temperature regulation feedback mechanism. It effectively enables constant-temperature soldering with high-precision real-time temperature control of the soldering target, ensuring superior soldering yield and accuracy. This system is particularly suitable for soldering high-precision microelectronic components sensitive to temperature, such as micro speakers/motors, connectors, camera modules, and more.

In the electronics industry, common soldering methods for microelectronic device manufacturing include brazing, wave soldering, resistance welding, flash welding, thermal fusion welding, ultrasonic welding, metal ball welding, and capacitor discharge welding. Due to the strong directionality and high monochromaticity of lasers, laser energy can be focused into high-intensity micro-spots through optical systems, making it an alternative advanced process for manufacturing electronic components. With the rapid development of laser technology, laser welding has seen significant advancements and is increasingly applied across various fields. Particularly in modern integrated circuit manufacturing, laser welding demonstrates unparalleled advantages over other methods.

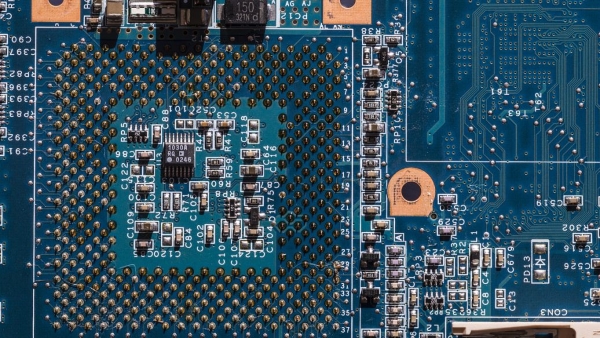

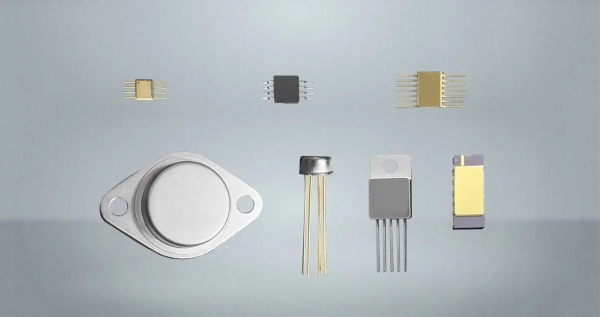

Electronic components are fundamental elements in electronic circuits, typically independently packaged with two or more leads or metal contacts. These components must be interconnected to form electronic circuits with specific functions, such as amplifiers, radio receivers, oscillators, etc. Soldering onto printed circuit boards (PCBs) is one of the most common methods for connecting electronic components. For many technicians, soldering small components on densely packed PCBs poses significant challenges. Traditional soldering tools are not only difficult to operate and inefficient but also prone to defects like mis-soldering and skipped soldering. Laser micro-welding technology effectively addresses these issues, providing a reliable solution for electronic component soldering.
