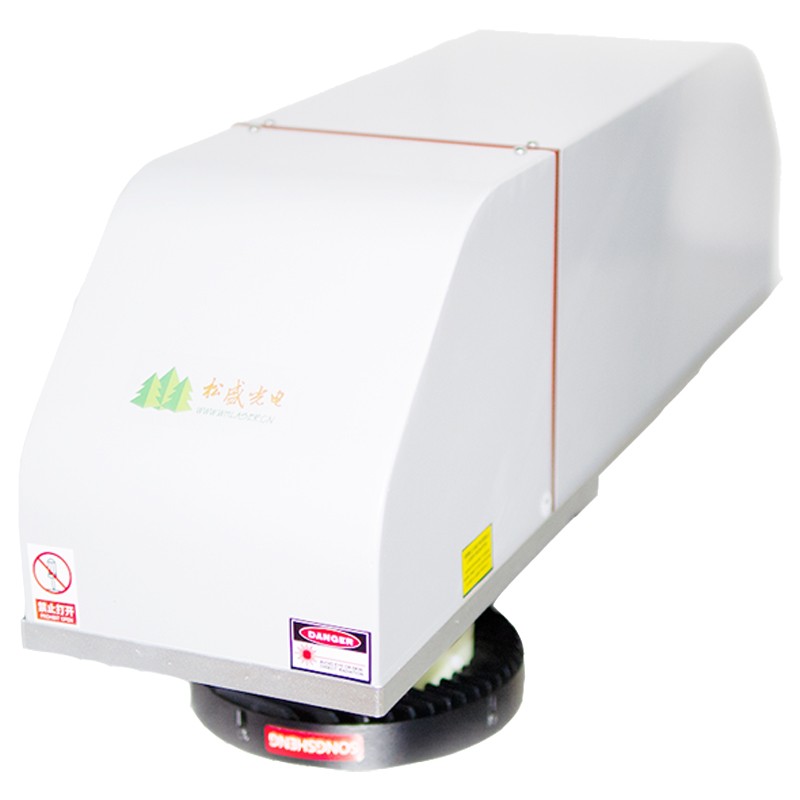

Oscilloscope Coaxial Temperature Measurement Vision Scanning Welding Processing Optical Systems

　　Product features

　　Scanning objective adopts telecentric design, which eliminates the problem of polygraphy brought by general scanning objective, and makes uniformity in the marking range.

　　Integrated design makes the system stable and reliable.

　　Internal coaxial CCD optical system for high-precision positioning. Absolute positioning accuracy of 0.02mm or less after calibration.

　　Temperature feedback function allows temperature control of small areas up to 1mm in diameter with a temperature accuracy of ±2°C.

　　CCD coaxial imaging system for real-time observation of the working conditions .

　　Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.

　　Main application

　　Applicable PCB board spot welding, soldering, non-metallic materials welding, plastic welding, 3C electronics industry, communications industry, semiconductor industry, cell phone camera industry, etc.

　　It is also widely used in teaching and research, heating and automated production lines for special welding, automation of processes, defense and aerospace industries.

　　Suitable for high-precision soldering of parts and heat-sensitive components that cannot withstand high temperatures in the vicinity of the solder joint.

　　Product specifications
