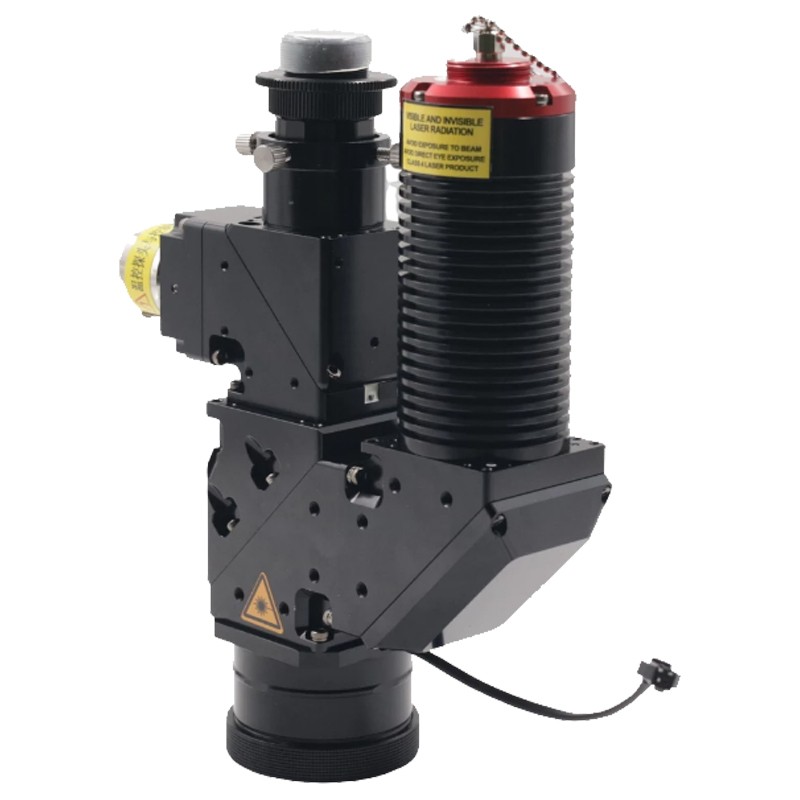

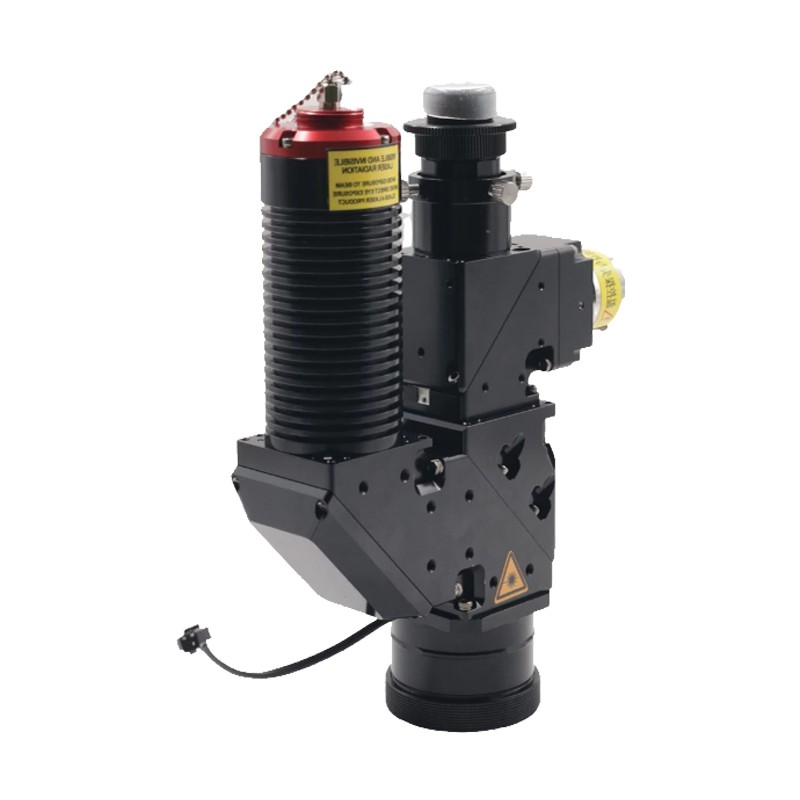

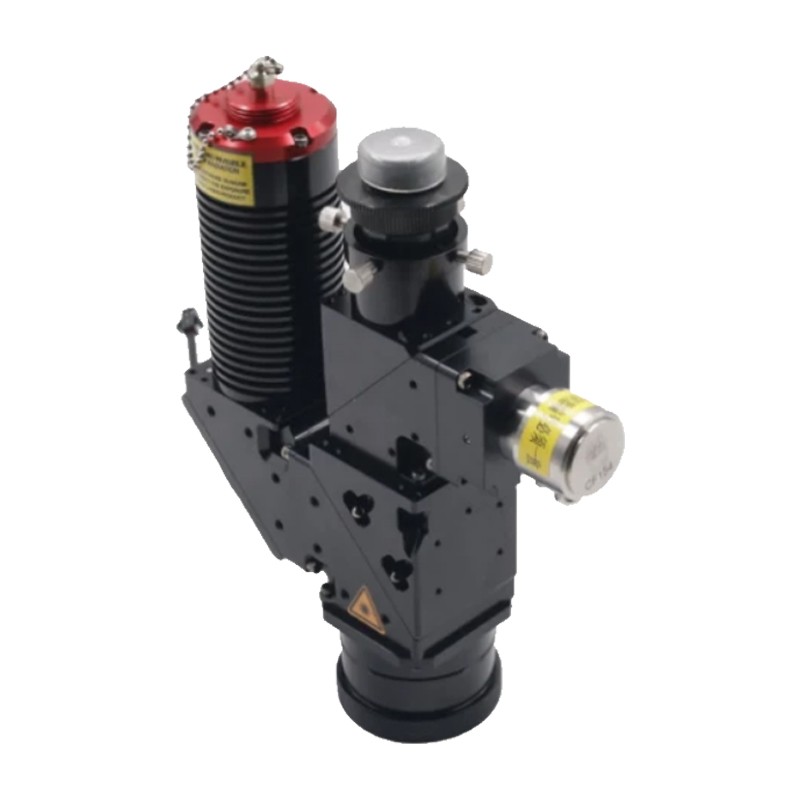

Coaxial temperature measurement vision laser welding head
Product features
Fine Spot Diameter (Spor): The laser can form a spot diameter as small as 0.1mm, and the tin feeder can be as small as 0.3mm, enabling the soldering of micro-pitch mounting devices and chip parts.
Because the heating is localized for a short period of time, there is little thermal impact on the substrate and the surrounding components, resulting in good solder joint quality.
No soldering iron tip consumption, no need to replace the heater, and high operating efficiency during continuous operation.
Lead-free soldering is less likely to result in cracked solder joints.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser soldering
Plastic and other non-metallic cladding
Process point temperature feedback welding
Product specifications
序号 Number | 通光孔径mm Aperture of aperture | 光纤接口 Aperture(mm) | 照明 Illumination | 适用波长nm Applicable wavelength | 聚焦焦距mm Focusing focal length | 视场范围mm Focusing focal length | CCD接口 CCD interface | 测温模块接口 Temperature measurement module interface |
1 | ≤40 | D80 | 400~700 | 800-1100 | 80-300 | 10-20 | C/CS | selectable |
2 | ≤40 | SMA-905 | 400~700 | 915/980 | 80-300 | 10-20 | C/CS | selectable |
3 | ≤40 | QBH | 400~700 | 900-1100 | 80-300 | 10-20 | C/CS | selectable |
Note: This product is optionally available without the temperature measurement interface.
