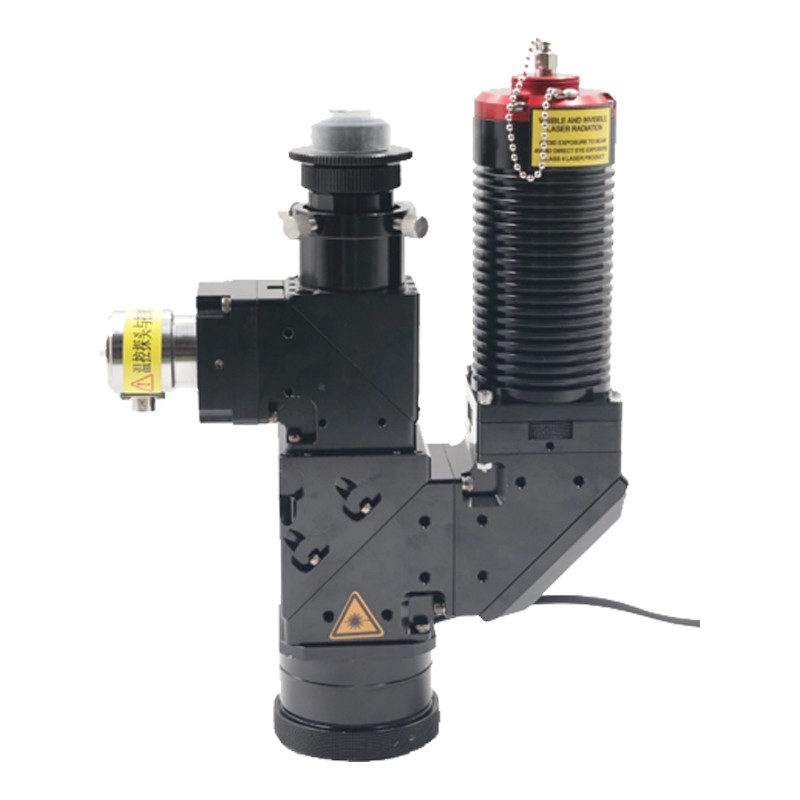

Coaxial temperature measurement vision square spot laser welding head
Product features
Through the optical shaping way to make the focused spot for the square, the use of composite lens structure, effectively eliminating the laser single lens focus brought about by halo, halo and other focusing bad phenomena.
D80 and SMA-905 interfaces optional;Semiconductor and YAG laser welding systems for fiber coupling.
Temperature measurement module optional;Extremely uniform spot energy, flat-top light distribution.
The square spot is available in dozens of shapes and sizes.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser soldering.
Plastic and other non-metallic cladding.
Process point temperature feedback welding.
Product specifications
序号 Number | 通光孔径mm Aperture of aperture | 光纤接口 Aperture(mm) | 照明 llumination | 适用波长nm Applicable wavelength | 聚焦焦距mm Focusing focallength | 视场范围mm Field of view | CCD接口 CCD interface |
1 | ≤40 | D80 | 400-700 | 915 | 40-700 | 10-20 | C/CS |
2 | ≤40 | SMA905 | 400-700 | 915 | 40-700 | 10-20 | C/CS |
3 | ≤40 | QBH | 400-700 | 915 | 40-700 | 10-20 | C/CS |
