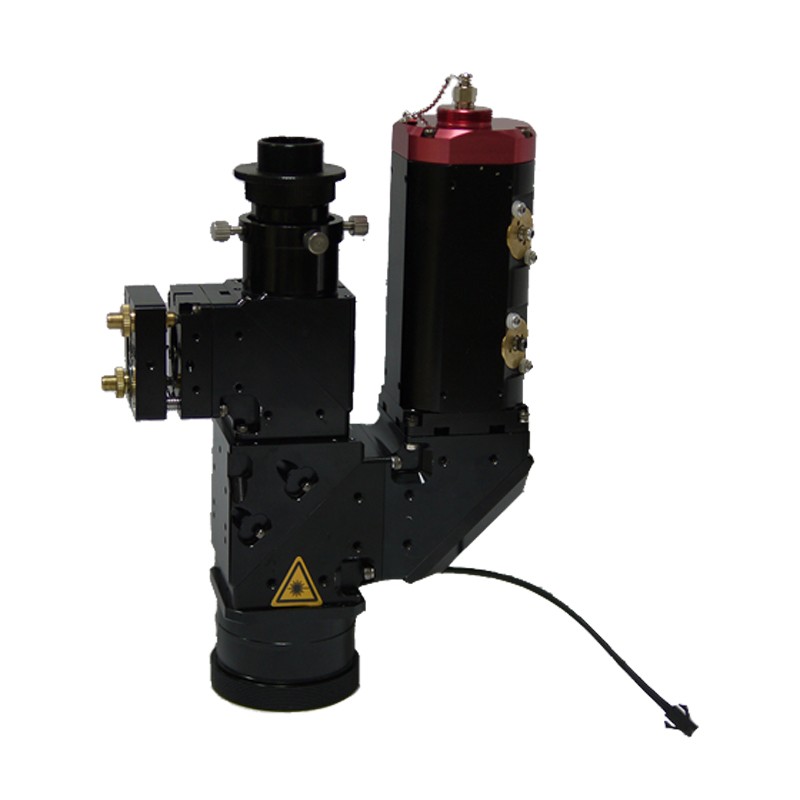

Coaxial temperature measurement vision bar spot XY adjustable laser welding head
Product features
The use of composite lens structure, effectively eliminating the halo, halo and other focusing defects brought about by the laser single lens focusing.
D80 and SMA-905 interfaces are optional.
For fiber-coupled semiconductor laser and YAG laser welding systems.
Temperature measurement module is optional.
Extremely uniform spot energy, approximate flat-top light distribution.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser soldering.
Plastic and other non-metallic cladding.
Process point temperature feedback welding.
Product specifications
序号 Number | 通光孔径mm Aperture of aperture | 光纤接口 Aperture(mm) | 照明 Illumination | 适用波长nm Applicable wavelength | 聚焦焦距mm Focusing focal length | 视场范围mm Focusing focal length | CCD接口 CCD interface | 测温模块接口 Temperature measurement module interface |
1 | ≤40 | D80 | 400~700 | 915/980 | 80-300 | 10-20 | C/CS | selectable |
2 | ≤40 | SMA-905 | 400~700 | 915/980 | 80-300 | 10-20 | C/CS | selectable |
3 | ≤40 | QBH | 400~700 | 915-1100 | 80-300 | 10-20 | C/CS | selectable |
Note: This product is optionally available without the temperature measurement interface.
