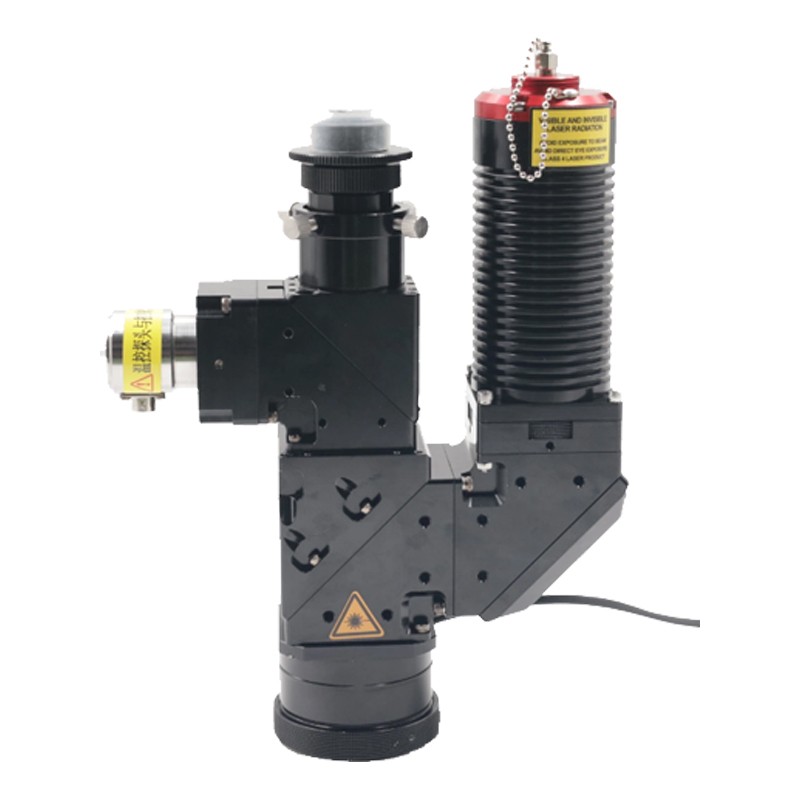

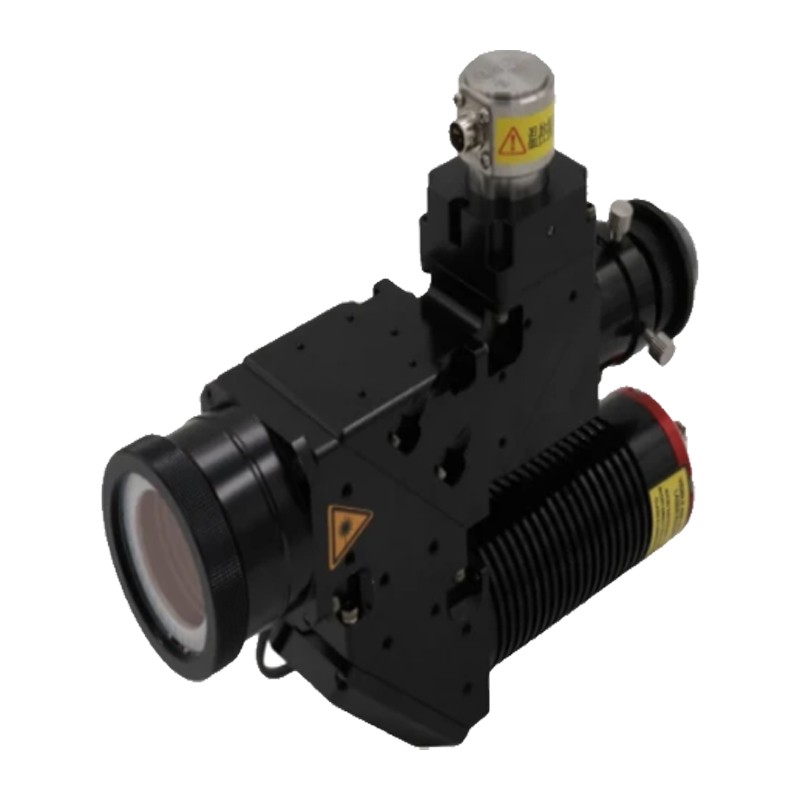

Coaxial temperature measurement vision bar spot laser welding head
Product features
Through the optical shaping way to focus the spot for the long strip, the use of composite lens structure, effectively eliminating the laser single lens focus brought about by halo, halo and other focusing bad phenomena.
D80 and SMA-905 interfaces optional.
Semiconductor and YAG laser welding systems for fiber coupling.
Temperature measurement module optional.
The spot energy is extremely uniform and the spot is a flat-topped light, which is characterized by a high degree of uniformity.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser soldering.
Plastic and other non-metallic cladding.
Process point temperature feedback welding.
Product specifications
序号 Number | 通光孔径mm Aperture of aperture | 光纤接口 Aperture(mm) | 照明 llumination | 适用波长nm Applicable wavelength | 聚焦焦距mm Focusing focallength | 视场范围mm Field of view | CCD接口 CCD interface |
1 | ≤40 | D80 | 400-700 | 915 | 40-700 | 10-20 | C/CS |
2 | ≤40 | SMA905 | 400-700 | 915 | 40-700 | 10-20 | C/CS |
3 | ≤40 | QBH | 400-700 | 915 | 40-700 | 10-20 | C/CS |
