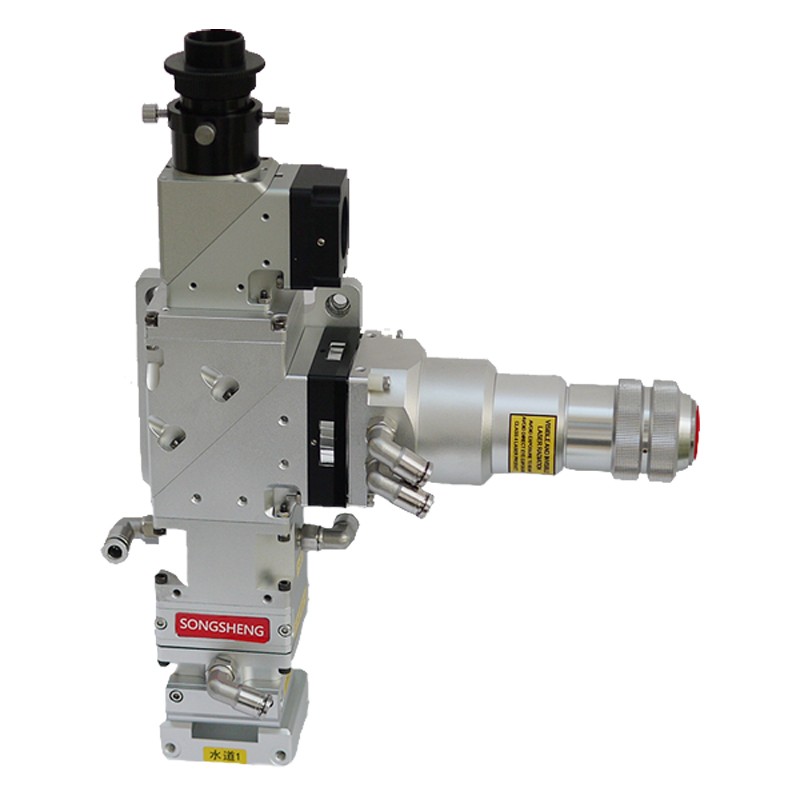

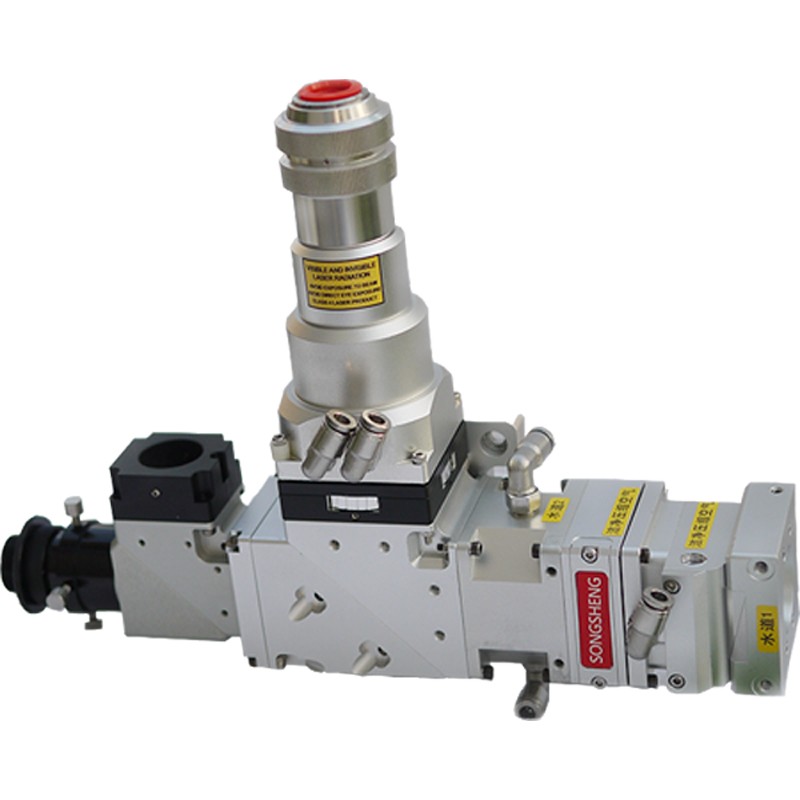

High Power Coaxial Thermal Imaging Laser Welding Heads
Product features
Using wavelengths of 915nm, 976nm, 1064nm laser beams, the output laser is more flexible.
Slow heating of the parent material and slow warming up and cooling down of the weld joint improves the weld surface finish.
Temperature range from 100℃-400℃/250℃-2000℃.
Fully water-cooled heat dissipation, weld head internal structure completely sealed.
Equipped with an air curtain component to minimize contamination of the lens by welding fumes and spatter residue.
Protective lenses with drawer structure, easy to replace.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser welding
Constant temperature surface quenching and hardening
Constant temperature laser cladding
Constant Temperature 3D Printing
Thermostatic surface treatment, burring
Product specifications
Product Model | LWH-FDL-QBHW60D40IMPY-K | laser wavelength | 915/1064nm |
laser power | high10000W | Input Fiber Interface | QBH |
clear aperture | 40mm | imaging lens | F40 |
collimation focal length | 150mm | Focusing Focus | 150/300/600mm |
Note: This product is optionally available without the temperature measurement interface. (Product specifications are subject to change without notice)
