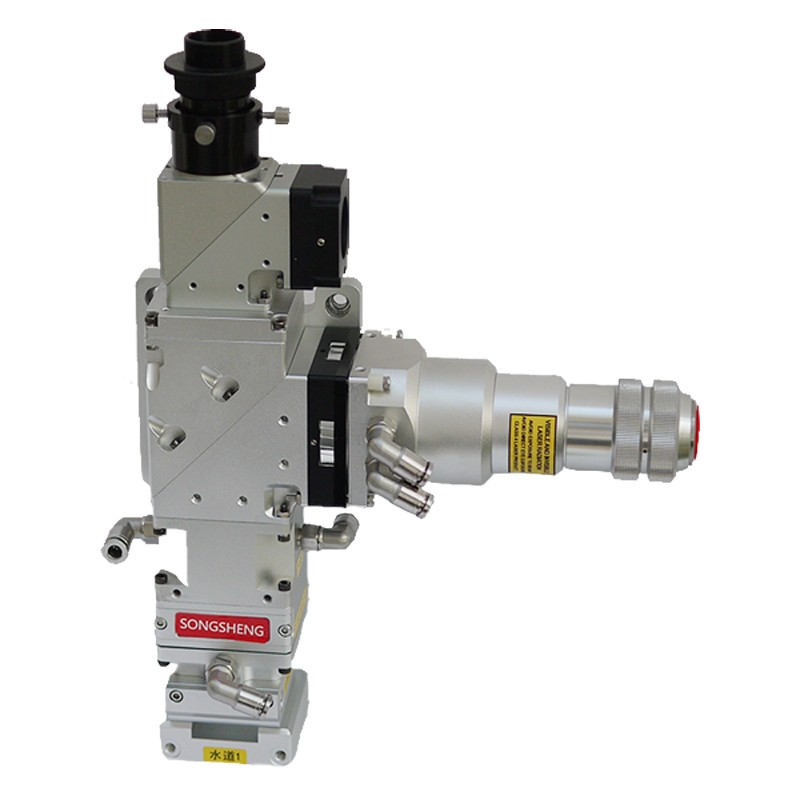

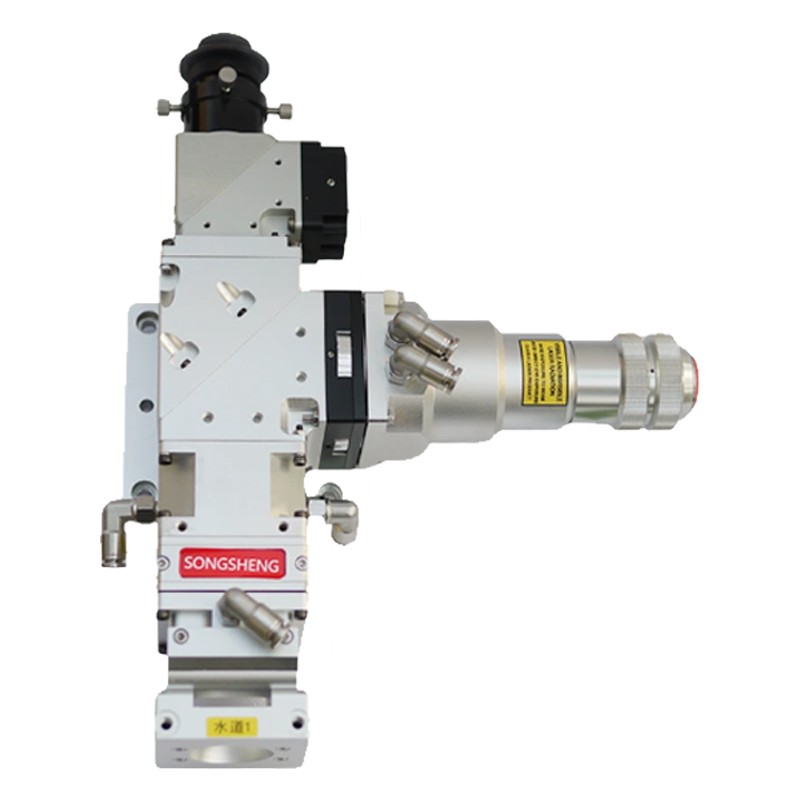

1064 Fiber Optic Process Point Temperature Feedback Weld Head
Product features
Using a laser beam with a wavelength of 1064nm, the output laser is more flexible.
Slow heating of the parent material and slow warming up and cooling down of the weld joint improves the weld surface finish.
Temperature range from 100℃-400℃/250℃-2000℃.
Fully water-cooled heat dissipation, weld head internal structure completely sealed.
Equipped with an air curtain component to minimize contamination of the lens by welding fumes and spatter residue.
Protective lenses with drawer structure, easy to replace.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Main application
Constant temperature laser welding.
Constant temperature surface quenching and hardening.
Constant temperature laser cladding.
Constant Temperature 3D Printing.
Thermostatic surface treatment, burring.
Product specifications
Product Model | LWH-QBHIMPY-Y | laser wavelength | 1064nm |
laser power | 最高5000W | Input Fiber Interface | QBH |
clear aperture | 40mm | imaging lens | F40 |
collimation focal length | 150mm | Focusing Focus | 150/300/600mm |
Note: This product is optionally available without the temperature measurement interface. (Product specifications are subject to change without notice)
