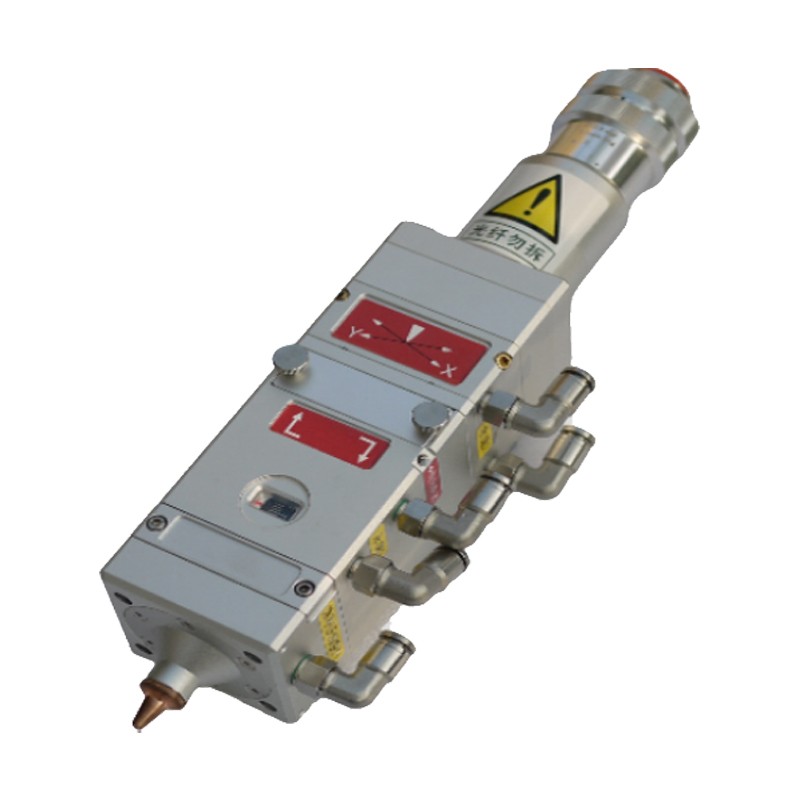

This cutting head is a precision fiber laser (λ=1064nm) cutting head featuring a multi-lens collimation and focusing system. It delivers an ultra-fine focal spot with high accuracy, enabling micro-hole cutting capability. With optimized mechanical design, precision adjustment mechanisms, and complete sealing performance - combined with water cooling and coaxial gas assist - the laser cutting head ensures stable and continuous operation at high power levels.
Product Description:
This precision fiber laser cutting head (λ=1064nm) features a multi-lens collimation and focusing system that delivers a small focused spot with high accuracy, capable of cutting micro-apertures. With optimized mechanical design, precision adjustment mechanisms, complete sealing, water cooling, and coaxial gas assist, it ensures stable operation at high power levels. Product weight: 1.84kg.
Key Features:
Adjustable XY collimation
Precision manual focusing mechanism
Full-body water cooling
Fully sealed internal structure
Drawer-type design for easy replacement
Includes nozzle assembly
Main Applications:
Metal drilling
Stainless steel cutting
Product Specifications:
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | SS-CUT-1Z331 | Laser Wavelength | 1064nm |
| Laser Power | 500W | Fiber Input Interface | QBH |
| Collimating Focal Length | 100mm | Focusing Focal Length | 100mm |
| Horizontal Adjustment Range (Collimation) | ±1.5mm | Vertical Adjustment Range (Focus) | ±7mm |
| Nozzle Diameter | 0.5-2mm | Maximum Cutting Gas Pressure | 25bar |
