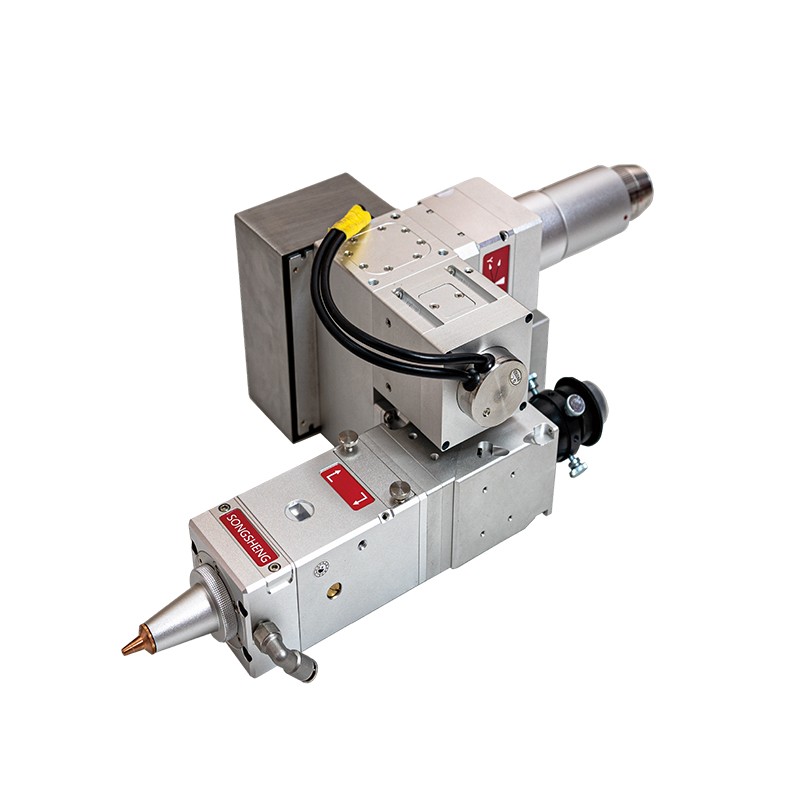

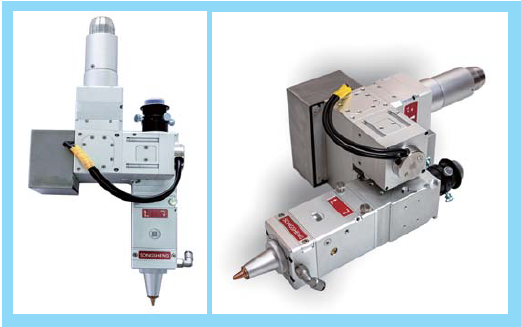

This cutting head is a precision fiber laser (λ=1064nm) processing head featuring a multi-lens collimation and focusing system, delivering a small focused spot with high accuracy. When combined with XY galvanometer rotation, it enables the cutting of micro-sized apertures.
With an optimized mechanical design and precise adjustment mechanisms, along with fully sealed protection, water cooling, and coaxial gas assist, this laser cutting head ensures stable and continuous operation at high power levels. The product also supports coaxial imaging.
Product Introduction:
This cutting head is a precision fiber laser (λ=1064nm) processing head equipped with a multi-lens collimating and focusing system, delivering an ultra-fine focused spot for high-precision machining. When integrated with XY galvanometer rotation, it enables the cutting of micro-sized apertures.
Featuring an optimized mechanical design, precision adjustment mechanisms, and a fully sealed structure, this laser cutting head ensures stable, long-term operation at high power levels with water cooling and coaxial gas assist. Additionally, the product supports coaxial imaging for enhanced processing accuracy.
Product Specifications:
| Parameter | Specification |
|---|---|
| Model | SS-CUT-3A321 |
| Laser Wavelength | 1064nm |
| Maximum Laser Power | ≤1000W |
| Fiber Input Interface | QBH |
| Collimating Focal Length | 75/100/125/150mm (selectable) |
| Focusing Focal Length | 75/100/125/150mm (selectable) |
| Horizontal Collimation Adjustment Range | ±1.5mm |
| Vertical Focal Adjustment Range | ±7mm |
| Nozzle Aperture | 0.5-2mm (configurable) |
| XY Deflection Mirror Size | 20mm |
