Can Laser Soldering Be Used for Copper-Plated Pads?

Can Laser Soldering Be Used for Copper-Plated Pads?

Laser soldering is a widely used technology in the assembly of various electronic components. But is it suitable for copper-plated pads? Songsheng Optoelectronics provides insights below.

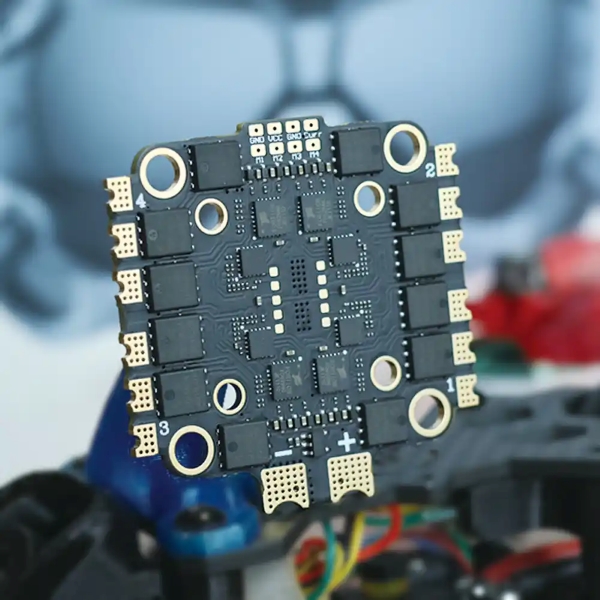

Material Compatibility

Characteristics of Copper-Plated Pads:
Copper-plated pads offer excellent electrical and thermal conductivity, with a relatively smooth surface that provides a solid foundation for soldering. While copper is chemically stable, it can oxidize under high temperatures or humid conditions. However, in laser soldering, the extremely short welding duration minimizes oxidation on the copper-plated surface, ensuring minimal impact on soldering quality.

Bonding Between Solder and Copper-Plated Pads:

Common solder materials such as tin-lead alloys and lead-free solders (e.g., tin-silver-copper alloys) exhibit excellent metallurgical compatibility with copper. During laser soldering, when the laser beam irradiates the surface of the copper-plated pad, the solder rapidly melts. Under the influence of surface tension, the molten solder spreads across the pad surface, forming atomic diffusion and bonding with the copper layer. This creates a robust metallic bond, ensuring a high-quality solder joint.

Inspecting the Quality of Copper-Plated Pads:

Prior to soldering, it is essential to thoroughly inspect the quality of the copper-plated pads, including the thickness and uniformity of the copper layer, adhesion strength, pad flatness, and dimensional accuracy. The thickness and uniformity of the copper plating directly affect the conductivity and reliability of the solder joint. Insufficient adhesion may cause the copper layer to separate from the substrate during soldering, compromising joint integrity. Additionally, pad flatness and dimensional precision influence solder distribution and placement accuracy. Therefore, any copper-plated pads failing to meet quality standards must be repaired or replaced to guarantee optimal soldering results.

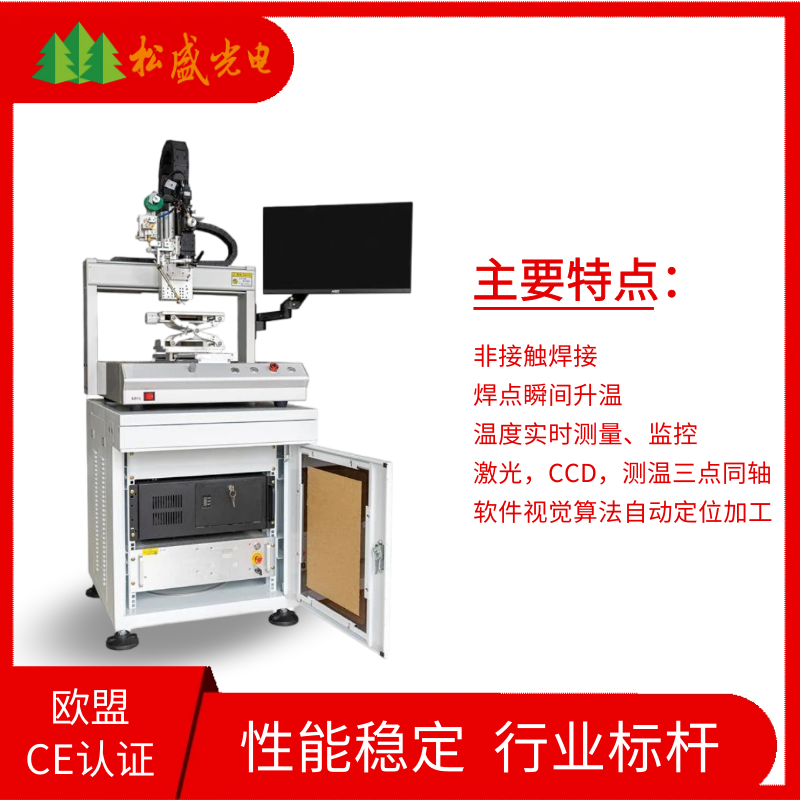

Advantages of Laser Soldering

Precise Energy Control:
Laser soldering enables highly accurate energy regulation by adjusting parameters such as laser power, pulse width, and frequency. This allows concentrated energy delivery to the welding zone, enabling rapid heating of the copper-plated pad surface for quick solder melting. The process ensures excellent wettability and bonding strength while avoiding common issues associated with conventional soldering methods, such as copper layer oxidation and deformation caused by excessive heat input. This precision guarantees consistent soldering quality for copper-plated pads.

Rapid Heating and Cooling:
The laser soldering process features instantaneous heating of the copper-plated pad to soldering temperature followed by quick cooling. This characteristic offers dual benefits for copper pad soldering. Firstly, the fast heating significantly reduces the pad's exposure time to high temperatures, minimizing oxidation risks and maintaining surface cleanliness and activity - crucial factors for optimal solder wettability and adhesion. Secondly, the accelerated cooling rate promotes rapid solidification of solder joints, resulting in superior crystalline structures that enhance joint strength and long-term reliability.

Superior Control and Repeatability:
Laser soldering systems achieve exceptional process control through precise parameter configuration and advanced control systems. When soldering copper-plated pads, operators can meticulously adjust laser power, pulse width, frequency, and welding speed based on the pad's material properties, dimensions, geometry, and specific soldering requirements. This precision ensures consistently stable and reliable weld quality with excellent repeatability.

Furthermore, the high automation level of laser soldering equipment enables operation according to pre-programmed paths and procedures, significantly reducing human-induced variability. This automated approach enhances both process control and repeatability, guaranteeing superior soldering quality for copper-plated pads.

Clean and Eco-Friendly Soldering Process

Laser soldering represents a clean, non-contact welding technique where a precisely focused laser beam rapidly heats the surface of copper-plated pads through optical lenses to achieve controlled solder melting and bonding. Unlike conventional soldering methods, this advanced process completely eliminates the requirement for flux and generates zero smoke or spatter, offering an environmentally superior solution with significant implications for copper-plated pad applications.

The cleanliness of this process delivers two crucial benefits for copper pad soldering. First, by removing the need for flux, it prevents potential corrosion or surface degradation from flux residues, thereby preserving the copper layer's pristine condition and chemical reactivity - essential factors for achieving optimal solder wettability and bond strength. Second, the absence of smoke and spatter not only maintains a cleaner workspace but also ensures uninterrupted soldering operations, ultimately contributing to more consistent and reliable joint quality.

Practical Implementation Guidelines

To maximize laser soldering effectiveness on copper-plated pads, meticulous attention must be paid to surface preparation and parameter optimization. Thorough pre-cleaning is mandatory to eliminate all surface contaminants including oils and particulate matter that could compromise solder adhesion. Equally critical is the precise calibration of laser parameters, which must be carefully tailored to each pad's unique material characteristics and geometric specifications to guarantee flawless welding results. This dual focus on preparation and precision ensures the technology's advantages are fully realized in practical applications.
