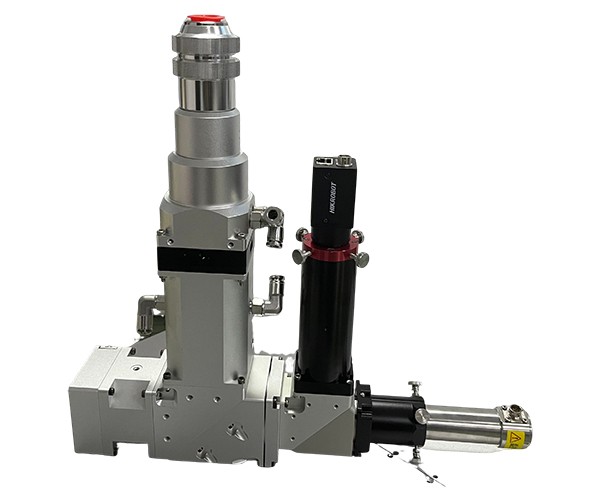

This welding head is a QBH fiber welding head (λ=976nm), collimation and focusing lens is a multi-piece combination, plus a special optical design to make the focusing spot into a long strip, to meet the huge amount of welding, such as MiniLED. With optimized mechanical design and precision adjustment mechanism, complete sealing performance, and constant temperature control, with water cooling and coaxial blowing, the laser welding head can be in higher power under continuous and stable operation, this product is compatible with coaxial imaging. Continuous and stable operation at higher power, this model is compatible with coaxial imaging.
Product description
This welding head is a QBH fiber welding head (λ=976nm), collimation and focusing lens is a multi-piece combination, plus a special optical design to make the focusing spot into a long strip, to meet the huge amount of welding, such as MiniLED. With optimized mechanical design and precision adjustment mechanism, complete sealing performance, and constant temperature control, with water cooling and coaxial blowing, the laser welding head can be in higher power under continuous and stable operation, this product is compatible with coaxial imaging. Continuous and stable operation at higher power, this model is compatible with coaxial imaging.
Product specifications
Maximum laser power | 2000W | laser wavelength | 976±3nm |
control method | PC control, temperature feedback | Working distance | 400mm |
Light aperture | 30mm | Laser Interface | QBH |
Spot size 1 (option 1) | 1mmx30mm | Temperature range | 100-400℃ |
Spot size 2 (option two) | 6mmx70mm | power supply (of an appliance etc) | AC220V/50Hz |
