I. Working Principle of Galvanometer Laser Scanning Soldering Systems

Galvanometer laser scanning soldering systems utilize galvanometer scanning technology to reflect and convert a laser beam into a rapidly scanning laser spot through mirrors. The laser spot precisely scans across circuit boards, achieving accurate welding at targeted locations via high-precision motion control. This process enables high-speed, ultra-precise soldering operations.

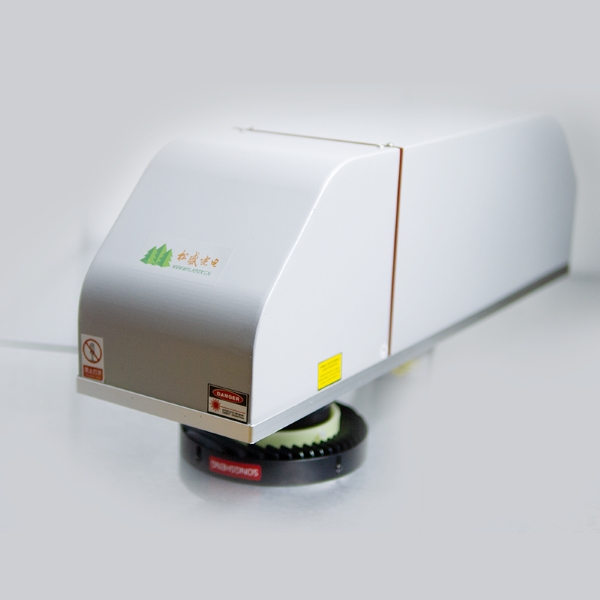

Integrated Constant-Temperature Galvanometer Coaxial Vision Scanning Welding System Product Image

II. Advantages of Galvanometer Laser Scanning Soldering Systems

1. High Precision
   Utilizing advanced laser spot scanning technology and motion control systems, these systems achieve ultra-high precision at sub-micron levels.

2. High Speed
   Equipped with rapid scanning capabilities and precise motion control, they enable exceptionally fast and efficient soldering operations.

3. Energy Efficiency
   The laser light source offers superior optical efficiency, delivering over 70% energy savings compared to traditional arc welding technologies.

Songsheng Optoelectronics has developed an Integrated Constant-Temperature Galvanometer Coaxial Vision Scanning Welding System to meet market demands. This system perfectly addresses the challenges of precision soldering in microelectronics, significantly improving yield rates and production efficiency in electronic manufacturing.

Its multi-point coaxial optical system features a specialized infrared lens design where the laser, imaging, and infrared temperature measurement points remain perfectly aligned across the entire working range—regardless of position relative to the lens center. This creates a true real-time temperature-monitored processing system.

Advantages of Galvanometer Coaxial Vision Scanning Welding Systems in Microelectronics Soldering Applications:

1. Coaxial Integration
   Advanced laser optics ensured by coaxial temperature measurement, imaging, laser output, guidance lighting, and illumination systems.

2. Closed-Loop Temperature Control
   Internal PID robust control of laser processing guarantees the highest production yield.

3. Ultra-Fast Infrared Thermometry
   Our infrared temperature sensors respond 1000× faster than conventional market solutions - faster response directly  correlates with superior weld quality.

4. Adaptable Spot Geometry
   Freely adjustable laser spot profiles optimally accommodate diverse pad geometries, enabling simultaneous uniform heating.

5. Telecentric Scan Lens Design
   Eliminates common scanning lens artifacts, ensuring consistent performance across the entire marking field.

6. Diffraction-Limited Optics
   Through rigorous testing, our multi-element collimating and focusing lens assemblies demonstrate optically superior performance compared to standard single/doublet designs. While most competitors use single-element optics, we employ multi-element diffraction-limited designs for both collimation and focusing.

7. Proprietary Multi-Channel Coaxial Technology
   Integrated coaxial alignment of laser, imaging, thermometry, and guidance light paths.

III. Applications of Galvanometer Laser Scanning Soldering Systems in Electronics Manufacturing

Galvanometer laser scanning technology finds extensive applications in electronics manufacturing, enabling precise soldering of various electronic components such as LEDs, transistors, and semiconductor devices. Compared to traditional manual soldering and wave soldering techniques, galvanometer laser scanning systems offer superior precision, faster processing speeds, and enhanced reliability, significantly improving both production efficiency and product quality.

In summary, galvanometer laser scanning soldering systems represent advanced welding equipment characterized by exceptional accuracy, high-speed operation, and energy efficiency. Their widespread adoption in electronics manufacturing plays a pivotal role in enhancing product quality and production efficiency.
