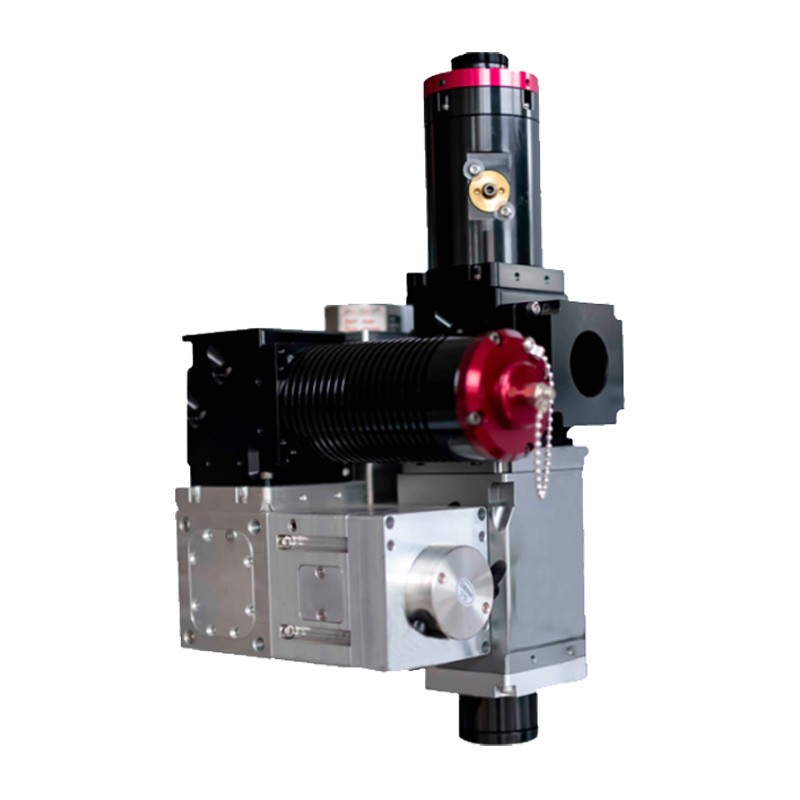

Thermostatic plastic swing welding head
Product features
Utilizing the system's coaxial CCD camera and monitoring device, the welded workpiece is positioned and tracked to avoid weld joint deviation during the real-time welding process.
The laser control unit receives the positioning completion signal and turns on the laser to locally irradiate the welding area for a set time.
Compatible with a wide range of collimating and focusing mirrors, it is ideal for welding a wide variety of material types and thicknesses.
Specialized technologies: laser, imaging, thermometry, red multi-optical co-axial.
Closed-loop temperature control.
Main application
Non-metallic cladding of plastics, etc.
Circuit Board, Aluminum Ribbon Temperature Feedback Soldering.
Product specifications
Product Model | LWHS-IMPYSCAN-FDL-K-F45 | laser wavelength | 915/1064nm |
laser power | 最高1KW | Input Fiber Interface | SMA905 |
oscillation frequency | 1kHZ | Focusing Focus | 150mm |
swing diameter | 15mm | Full Scanning Range | ±7.5mm |
Light aperture | 20mm | Range of temperature measurement modules | 60-400/250-1800℃ |
Camera interface | C/CS |
