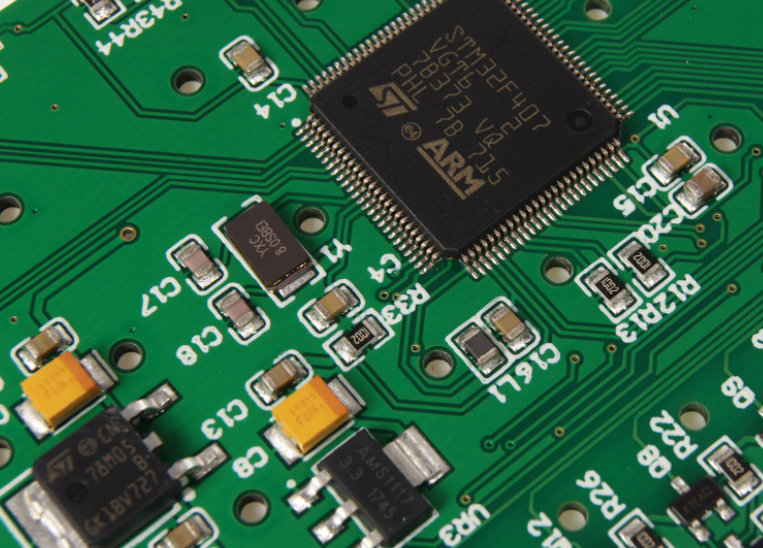

How to Prevent Solder Beading in High-Volume SMT Assembly Production?

Solder beads not only compromise product appearance but may also affect PCB electrical performance, potentially leading to serious issues such as short circuits. In high-volume SMT production, preventing solder beading and solder splatter during laser soldering of SMT paste remains a critical process challenge requiring ongoing optimization. The phenomenon primarily stems from the following key factors.

1. Excessive temperature: Excessive laser energy leads to localized overheating,      causing rapid melting of solder paste and facilitating solder bead formation.

2. Flux activity: Overly active or uneven flux distribution may contribute to solder beading.

3. Substrate contamination: Surface contaminants on the substrate impair solder paste      wettability and spreading.

4. Insufficient preheating: Inadequate preheating results in non-uniform thermal      distribution during soldering.

To address these issues, implementing effective countermeasures is critical for preventing solder bead formation. Below are proven solutions to eliminate solder beading in high-volume SMT assembly production.

First, optimize laser soldering parameters including power, speed, and focal length to ensure proper melting temperature and rate. Second, control environmental humidity to prevent adverse effects from excessive or insufficient moisture. Additionally, using high-quality solder paste and appropriate substrate materials can effectively minimize solder beading and splatter.

Furthermore, process optimization can significantly reduce these issues. For instance:

• Preheating solder paste before welding ensures more uniform distribution on      substrates

• Implementing nitrogen shielding during soldering prevents oxidation and humidity      effects

• Post-soldering cooling and cleaning removes potential beads and splatter

Material selection is equally critical. The purity, viscosity, and flow characteristics of solder directly impact results. Choosing stable, high-fluidity solder materials - akin to selecting premium ingredients - ensures smoother processing and reduced bead formation.

In summary, addressing solder beading and splatter in SMT laser soldering requires comprehensive consideration of:
✓ Process parameters
✓ Environmental controls
✓ Material quality
✓ Welding techniques

Through systematic adjustments and optimizations, we can enhance soldering quality, minimize defects, and improve product reliability and performance.

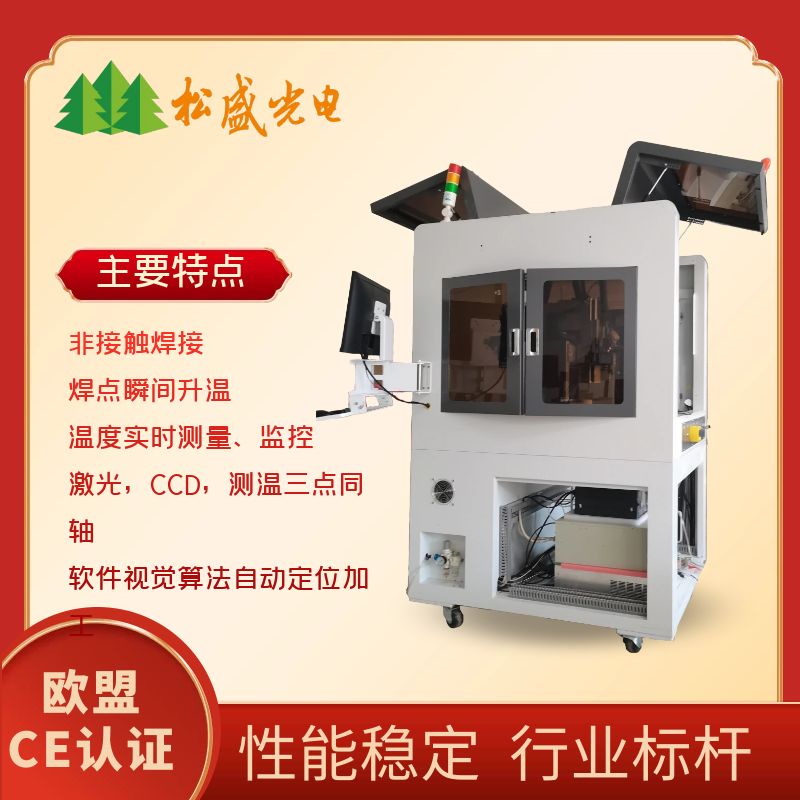

The Songsheng Optoelectronics Constant-Temperature Precision Laser Solder Paste Welding System is primarily composed of an automatic solder paste dispensing device (configurable with either rotary table or dual-Y setup), optionally integrated with AOI post-welding inspection functionality, infrared real-time temperature feedback system, CCD coaxial positioning system, and semiconductor laser units.

The independently developed constant-temperature laser soldering software enables layered processing of machining parameters for different solder joints and varying heights, ensuring single-pass completion while providing real-time monitoring of the welding progress during operation. The PID online temperature regulation feedback system maintains constant-temperature welding, significantly improving both welding yield rate and production efficiency.
