The Development and Applications of Laser Soldering in Automotive Electronics

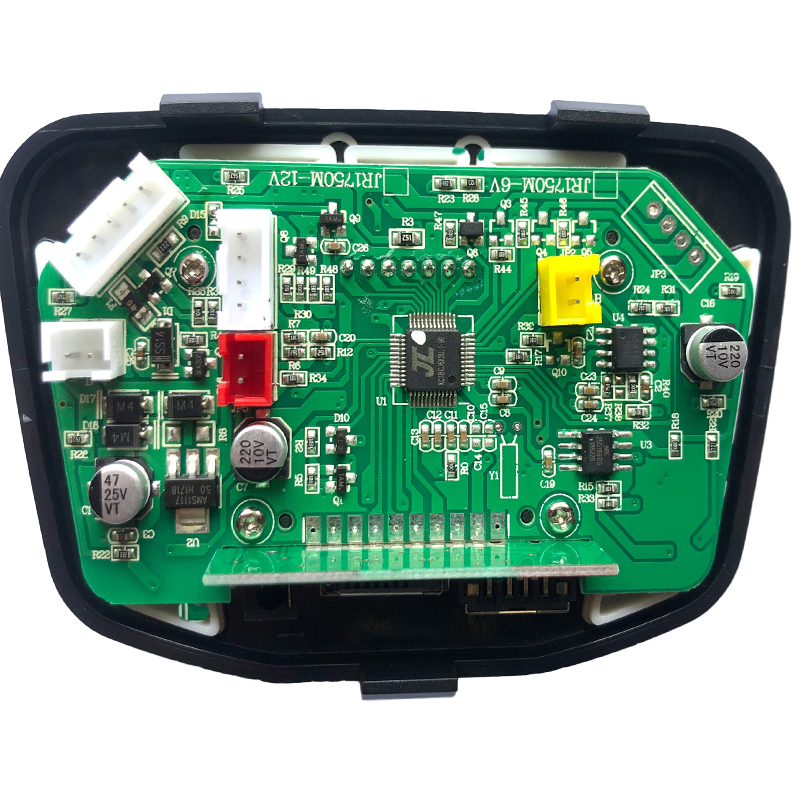

Laser soldering technology has matured significantly and is now widely adopted in industrial production, particularly in the automotive and semiconductor industries. In automotive electronics, laser soldering for center console navigation motherboards is an advanced joining technique used to interconnect electronic components and circuits on PCBs.

Songsheng Optoelectronics presents an overview of laser soldering applications in automotive navigation control modules. Let’s explore its key advantages:

Principle

  Laser soldering is a highly efficient and precise welding method that utilizes a high-energy-density laser beam as a heat source. When the laser beam irradiates the soldering area, the light energy is absorbed by the material and rapidly converted into thermal energy, causing localized melting. Upon cooling, a strong solder joint or seam is formed. For automotive central console navigation motherboards, laser soldering enables precise localized heating, minimizing thermal damage to surrounding components.

Advantages

1. High Precision
The laser beam features a small spot size and concentrated energy, allowing for extremely precise soldering position control. This makes it ideal for soldering densely spaced, high-accuracy electronic components such as microchip pins and fine circuit traces. The technology enhances motherboard integration and reliability.

2. Minimal Heat-Affected Zone (HAZ)
Laser soldering involves instantaneous heating and cooling, concentrating thermal effects within the soldering area. This reduces risks of thermal deformation, stress-induced component damage, or performance degradation, improving product quality and stability.

3. High Joint Strength
Laser soldering creates robust metallurgical bonds with superior seam strength, capable of withstanding automotive vibrations and mechanical shocks. This ensures stable, reliable connections between electronic components, mitigating failures caused by cold joints or fractures.

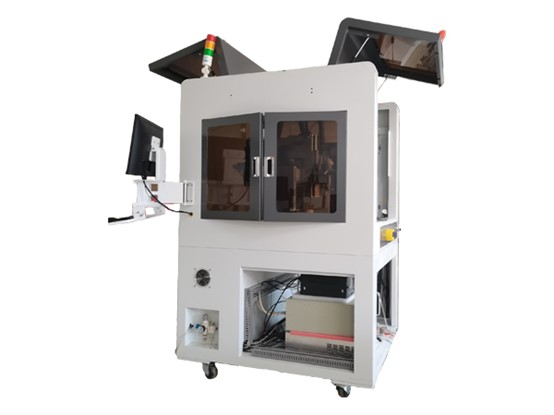

4. High Automation Compatibility

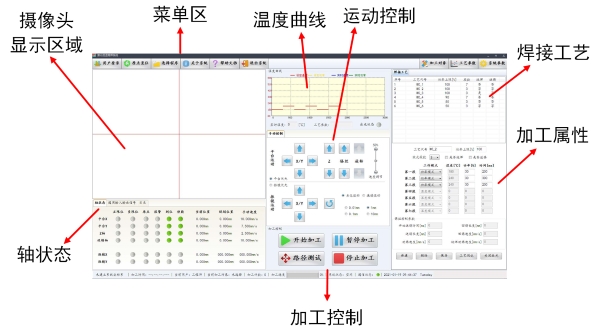

Easily integrated with automated production systems, laser soldering enables high-speed, efficient mass production. Programmable control over soldering paths and parameters enhances both productivity and consistency, making it ideal for large-scale industrial manufacturing of automotive navigation motherboards.

5. Eco-Friendly Process
The chemical-free process eliminates flux requirements, reducing chemical pollution and waste. It also prevents corrosion risks from flux residues, aligning with environmental regulations.

Key Process Parameters

1. Laser Parameter Optimization
Critical settings include laser power, pulse frequency, pulse width, and soldering speed. These must be precisely tuned based on:

• Substrate material properties

• Joint geometry and dimensions

• Component thermal characteristics
       Example: Adjusting power and speed ensures optimal penetration depth and      joint strength for varying board thicknesses.

2. Soldering Head Configuration
Selection and calibration of optical components (e.g., focusing lenses, mirrors) are essential to:

Achieve accurate beam positioning

Accommodate spatial constraints of soldering areas

Maintain optimal focal point and incident angles

Pre-Welding Preparation

Prior to welding, thorough cleaning of the motherboard and electronic component surfaces is essential to remove contaminants such as oils, dust, and oxides. This enhances solder wettability and joint strength. For sensitive components, preheating may be required to mitigate thermal stress during the welding process.

Welding Quality Inspection

Multiple inspection methods ensure welding quality:

• Visual Inspection: Verifies      solder joint morphology, dimensions, and surface quality

• X-ray Inspection: Detects      internal defects like voids or cracks within solder joints

• Ultrasonic Testing: Evaluates      joint integrity and internal bonding quality

These rigorous inspections facilitate timely defect identification and correction, ensuring final product reliability.

Application Scenarios

1. Chip Packaging
Laser welding enables precise interconnection of IC chips to motherboards, providing both electrical connectivity and mechanical fixation. Its micron-level precision meets the demanding requirements of fine-pitch chip packaging while ensuring reliable signal transmission.

2. FPC (Flexible Printed Circuit) Interconnection
The technology creates robust connections between flexible circuits and rigid motherboards without damaging the FPC's delicate structure. This is particularly valuable for:

• Display-to-motherboard interfaces in infotainment systems

• Antenna module integration

• Other space-constrained signal transmission applications

Sensor Welding
Various sensors in automotive electronic center console navigation systems - such as temperature sensors, humidity sensors, and accelerometers - require reliable electrical connections to the motherboard. Laser soldering can precisely weld sensor pins or solder points to corresponding circuits on the motherboard, ensuring accurate transmission of detected signals to the mainboard.

Other Component Welding
The technology is also suitable for:

• Soldering passive components (resistors, capacitors, inductors) on the motherboard

• Attaching auxiliary parts like shielding covers and heat sinks

• Ensuring both electrical performance and mechanical stability of the entire navigation control motherboard
