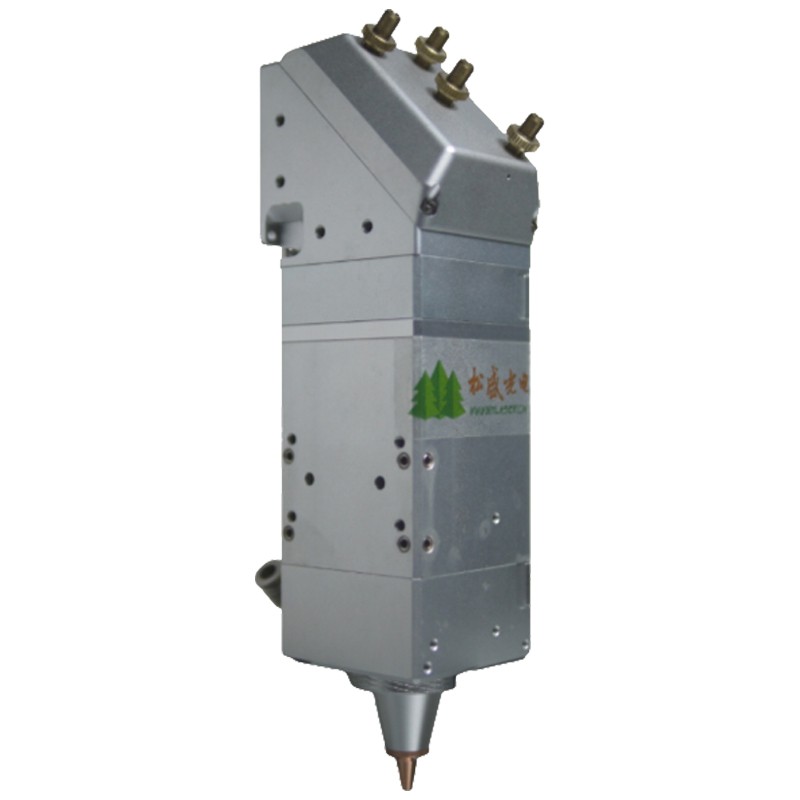

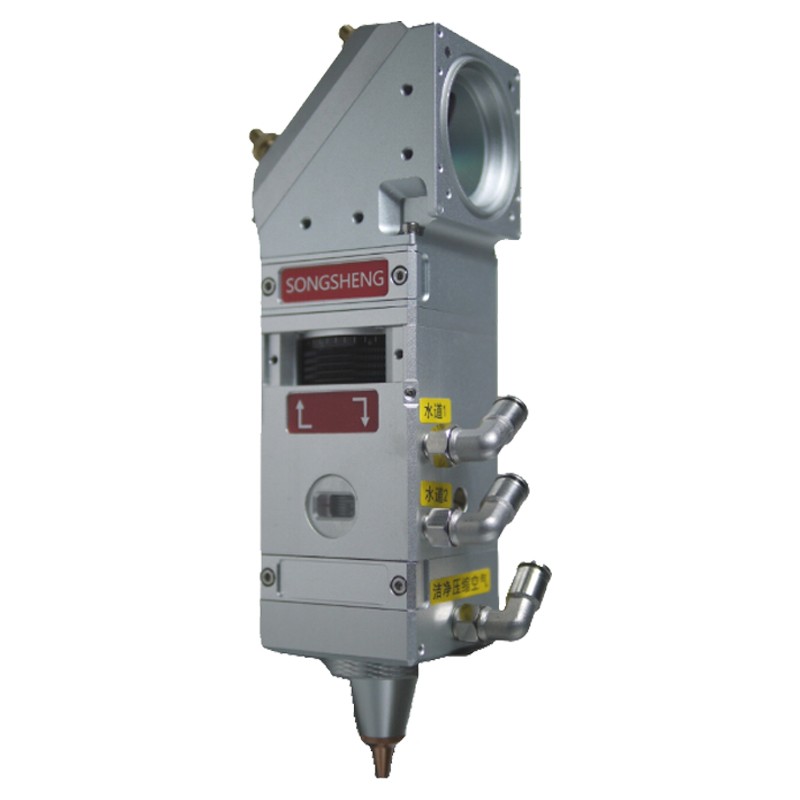

High-power UV or green light precision cutting head
Product features
Adjustable collimation in XY direction
Completely sealed internal structure
Precision manual focusing mechanism
Drawer construction for easy replacement
Multi-slice diffraction limit design
Equipped with nozzle parts
Full body water cooling
Main application
UV laser cutting of FR4, reinforced steel sheets, FPC, rigid-soft boards, and glass fiber boards.
Ultra-thin metal materials UV laser cutting.
PET film, PI film and other films made of transparent materials.
Etching of thin-film materials coated with conductive metals, including copper, brass, aluminum, ITO, silver paste, FTO and other thin-film materials.
Product specifications
Product Model | LCH-Z355F77NE | laser wavelength | 355/532nm |
laser power | 300W | Light aperture | ≤26mm |
Focusing Focus | 75mm | Focusing Spot | ≤10μm |
Adjustment range of collimation level | ±1.5mm | Focus vertical adjustment range | ±7mm |
Nozzle Aperture | 0.5-2mm | Maximum cutting air pressure | 25bar |
