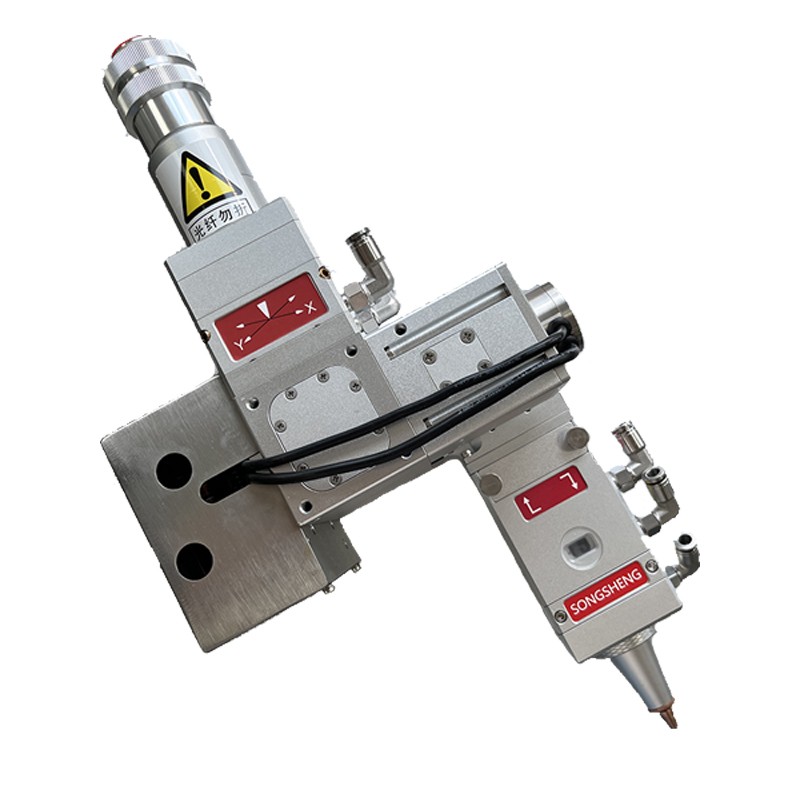

QCW1064 High-speed rotary precision cutting micro-hole machining head
Product features
Adjustable alignment in XY direction
Completely sealed internal structure
Precision manual focusing mechanism
Drawer construction for easy replacement
XY Rotary Motor Mechanism
Equipped with nozzle parts
Water-cooled heat dissipation
Main application
Metal Drilling
Stainless Steel Cutting
Product specifications
Product Model | SS-CUT-3A321 | laser wavelength | 1064nm |
laser power | ≤1000W | Input Fiber Interface | QBH |
collimation focal length | 75/100/125/150mm | Focusing Focus | 75/100/125/150mm |
Adjustment range of collimation level | ±1.5mm | Focus vertical adjustment range | ±7mm |
Nozzle Aperture | 0.5-2mm | XY Deflection Lens | 20mm |
