High-power micron-sized focus inspection device
Product description

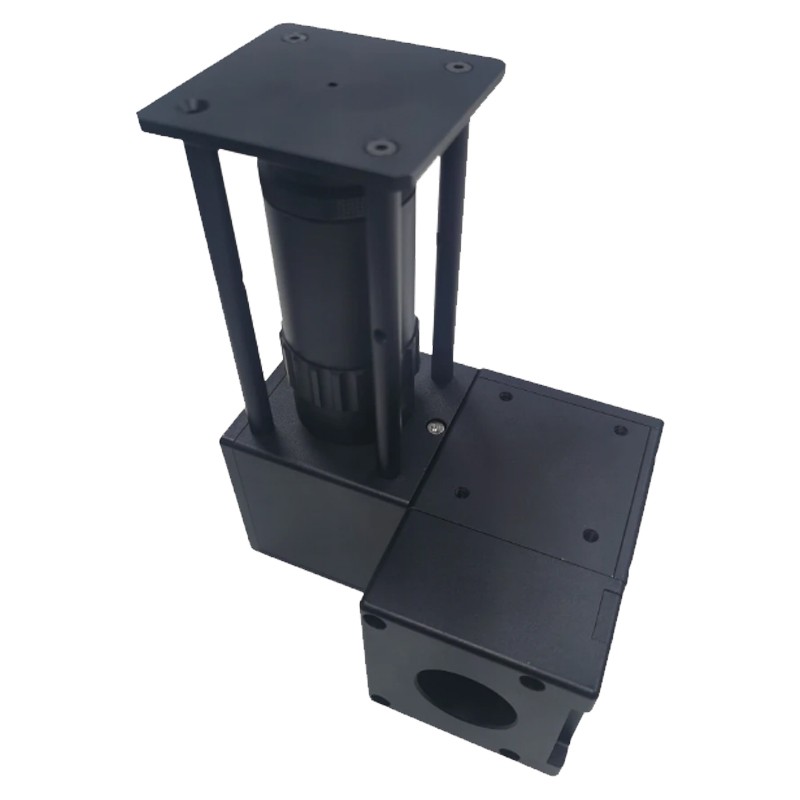

The high-power, micron-sized laser beam analysis products can measure the smallest diameter of a focusing spot of 5um. The product includes a focusing stage, a set of 10x objective lenses, two spectroscopes, two absorbing attenuators, a beam analysis camera, and software. This series of products can withstand a maximum average laser power of 10W at a spot size of 5 μm. Should you require testing at a higher power, please consult with your technician in advance. This series is a 10-times amplification device, and customers may choose X5, X10, or X20 amplification devices according to the test spot size.
Product features
Product specifications
Product Model | wavelength range | Amplifying device | Attenuation device (optional) | Minimum measurable focusing spot | Maximum detection power |
LAU0305U-X10 | 190nm~1100nm |
X10 |
OD0.5/0D1 /0D2/0D3 /0D4 Optional 2 pieces |
5μm-400μm |
10W@5μm |
LAU0307U-X10 | 190nm~1100nm | ||||
LAN0307U-X10 | 350nm~1100nm |
