Temperature control systems represent a vital configuration in laser soldering processes. Songsheng Optoelectronics presents an overview of laser soldering temperature control systems and their essential functions during soldering operations.

Laser Soldering Temperature Control System Explained

A laser soldering temperature control system is a precision apparatus designed to regulate thermal parameters during the soldering process. By continuously monitoring and adjusting real-time temperatures, it ensures solder materials melt and solidify within optimal thermal ranges, thereby guaranteeing consistent welding quality.

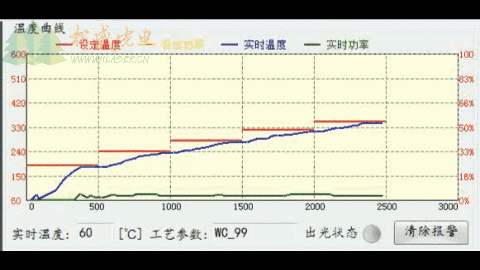

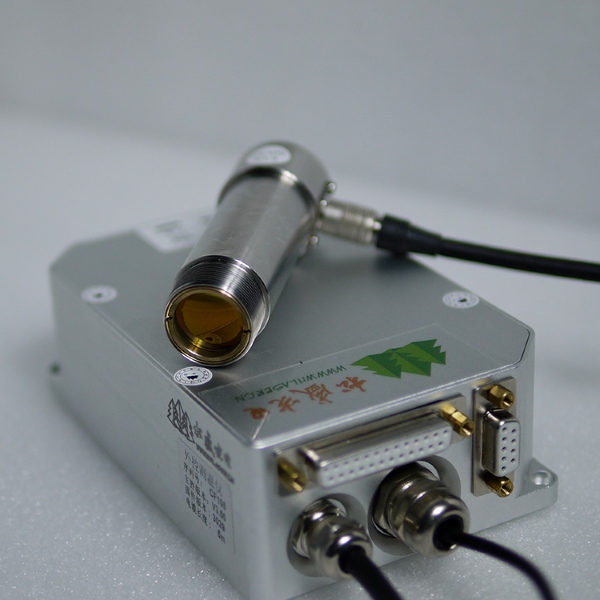

High-Speed Temperature Control System for Laser Processing with Constant

Temperature Welding

During the laser soldering process, temperature sensors continuously monitor the temperature of the welding area in real time. For instance, when the sensor detects that the temperature is below the preset solder melting point, the controller increases the power output of the laser generator. This delivers more laser energy to the solder, raising its temperature.

Once the temperature reaches or exceeds the melting point, the solder begins to melt. If the temperature continues to rise and approaches the critical threshold where solder splashing or oxidation may occur, the controller will either reduce the laser power or activate cooling devices to lower the temperature.

Upon completion of welding, the temperature control system can also regulate the cooling rate to ensure optimal solder joint quality. Through this closed-loop control method, the laser soldering temperature control system maintains precise temperature regulation within the ideal operating range.

The Critical Role of Temperature Control Systems in Laser Soldering for Ensuring Welding Quality

The temperature control system in laser soldering precisely regulates temperature to ensure the solder reaches its melting point and achieves complete liquefaction. Without effective temperature control, insufficient heat would prevent the solder from fully melting, resulting in failure to fill the joint gaps and causing cold solder joints or incomplete bonds. Cold solder joints lead to unreliable electrical connections, while incomplete bonds result in insufficient mechanical strength of the solder joints, potentially causing detachment or poor contact during subsequent use.

Excessive temperatures cause the solder to over-melt and splatter. Solder splattering not only wastes material but may also adhere to surrounding components, potentially causing short circuits. Simultaneously, high temperatures accelerate the reaction between the solder and oxygen in the air, leading to oxidation. Oxidized solder exhibits poor wettability, making it difficult to form strong bonds with the materials being joined and ultimately compromising welding quality.

Welding Process in Temperature Control Mode

Ensuring solder joint consistency: The temperature control system maintains the welding temperature within a preset range for each operation, guaranteeing stable and uniform solder joint quality. Whether in small-batch or mass production, this ensures every joint meets specified requirements for appearance, mechanical strength, and electrical performance, thereby enhancing overall product quality.

Protection of Soldered Components

Preventing Thermal Damage: Many electronic components, such as chips and micro-sensors, are highly temperature-sensitive. During laser soldering, the temperature control system prevents heat transfer to these components, avoiding structural damage caused by excessive heat. For instance, the semiconductor materials inside chips may undergo performance degradation under high temperatures, potentially causing functional failures in electronic devices.

Extending Component Lifespan: Precise temperature control minimizes thermal stress on components. Thermal stress results from material expansion/contraction during temperature fluctuations and may cause delamination or cracking between packaging materials and internal structures if excessive. By maintaining stable soldering temperatures, the control system reduces thermal stress, thereby extending component service life.

Adaptation to Diverse Soldering Materials and Process Requirements

Compatibility with Multiple Solder Alloys: Different solder materials possess distinct melting points and thermophysical properties. For instance, conventional tin-lead solder melts at approximately 183°C, whereas lead-free solder typically requires around 217°C. The temperature control system can precisely adjust welding parameters based on specific solder alloys, ensuring complete melting and optimal joint formation.

Meeting Complex Process Demands: In high-precision applications such as microelectronics assembly or medical device manufacturing, stringent temperature control is critical. The system fulfills these sophisticated requirements through refined thermal regulation, guaranteeing process stability while enhancing product reliability and performance.

Songsheng Optoelectronics Constant-Temperature Laser Soldering System

The Songsheng Optoelectronics Constant-Temperature Laser Soldering System integrates a real-time temperature feedback system, coaxial CCD positioning system, and semiconductor laser technology. Equipped with independently developed intelligent soldering software, it supports importing multiple file formats. The system features a proprietary PID online temperature regulation feedback mechanism that effectively maintains constant-temperature soldering, ensuring high yield rates and precision. With broad applicability, it is suitable for both integrated production lines and standalone operation.
