Laser Soldering Process Applied to TYPE-C USB Connector Manufacturing

Laser Soldering Process Applied to TYPE-C USB Connector Manufacturing

The TYPE-C USB connector is an extremely common product we encounter daily. As a precision component, its manufacturing requires meticulous craftsmanship. Songsheng Optoelectronics presents laser soldering technology for TYPE-C USB connectors.

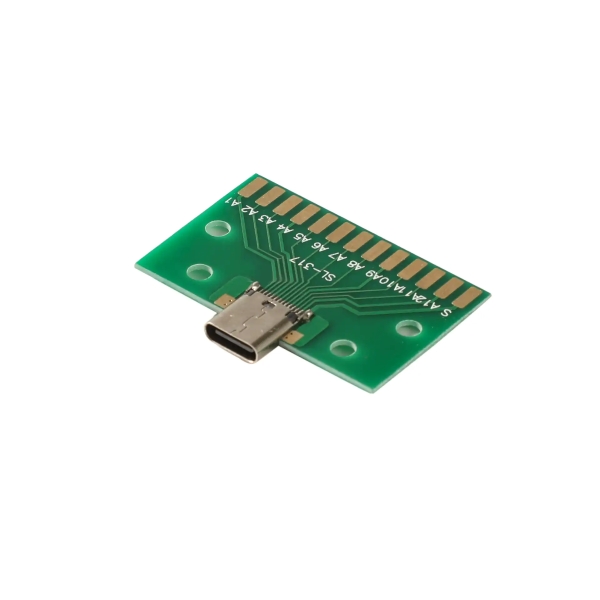

TYPE-C USB Connector Diagram

Laser Soldering Principle

Laser soldering is a precision welding technology that utilizes a high-energy-density laser beam as the heat source. By accurately controlling thermal input, it achieves localized melting of solder material to form reliable joints.

Characteristics of Laser Welding

High Precision: The laser beam spot diameter can be precisely controlled within an extremely small range, enabling high-precision welding. This ensures accurate soldering of the miniature pins and complex structures of TYPE-C USB connectors, meeting their stringent electrical connection requirements.

High Efficiency: Laser welding operates at high speeds, capable of completing multiple solder joint connections in a short time, thereby improving production efficiency and making it suitable for large-scale automated manufacturing.

Minimal Thermal Impact: With concentrated energy input, laser welding creates a small heat-affected zone during the process, effectively preventing connector plastic deformation, aging, and electronic component performance degradation caused by excessive heat.

Excellent Weld Quality: Laser welding produces dense weld structures with high strength and superior sealing properties, enhancing the reliability and stability of TYPE-C USB connectors while reducing contact resistance to ensure optimal electrical performance.

High Flexibility: Through programmable controls, laser welding can achieve various complex welding paths and patterns, adapting to different types and specifications of TYPE-C USB connectors, demonstrating remarkable flexibility and adaptability.

Songsheng Optoelectronics Constant-Temperature Laser Soldering System Schematic Diagram

Features of Songsheng Optoelectronics Constant Temperature Laser Soldering System

1. High Processing Precision

• Minimum laser spot diameter of 0.1mm

• Capable of soldering micro-pitch mounted devices and chip components

2. Localized Heating with Minimal Thermal Impact

• Short-duration localized heating minimizes heat transfer to PCB and surrounding       components

• Customizable heating profiles for different component lead types ensure consistent soldering quality

3. No      Consumable Parts

• Eliminates soldering iron tip replacement

• Enables high-efficiency continuous operation

4. Micron-Level Precision

• Laser spot adjustable to micron-scale precision

• Program-controlled processing time/power parameters

• Superior accuracy compared to conventional soldering irons

• Capable of soldering in spaces under 1mm

5. Coaxial Multi-Optical Path Design

• Integrated CCD positioning system

• "What You See Is What You Get" visual alignment

• Eliminates repeated vision calibration

6. Non-Contact Processing

• No mechanical stress associated with contact soldering

• Electrostatic discharge (ESD) free

7. Environmentally Friendly

• Laser as green energy source

• Cleanest processing method with no consumables

• Simple maintenance and user-friendly operation

8. Lead-Free Soldering Capability

• Crack-free solder joints in lead-free applications

Process Requirements

Pre-Welding Preparation:
Prior to welding, the soldering surfaces of TYPE-C USB connectors must undergo thorough cleaning to remove contaminants including oils, dust, and oxides, ensuring optimal welding quality. Concurrently, appropriate laser welding equipment should be selected based on the connector's material composition and structural characteristics, with precise calibration of welding parameters including:

• Laser power output

• Pulse frequency

• Welding speed

• Focal length adjustment

Welding Process Control:
During the welding operation, precise regulation of laser beam energy and positional accuracy is essential to maintain process stability and consistency. For high-precision TYPE-C USB connectors, implementation of precision fixtures and advanced positioning systems may be necessary to:

• Guarantee welding positional accuracy

• Eliminate cold solder joints

• Prevent solder skips

• Avoid other welding defects

Laser Power Parameters:
Optimal laser power must be determined according to:

• Base material properties

• Material thickness
  Insufficient power may result in weak joints, while excessive power risks    material penetration.

Welding Speed Optimization:
Welding speed must be coordinated with laser power output. Generally, higher power settings permit increased welding speeds to prevent material over-melting.

Temperature Profile Management:
When operating in temperature-controlled mode, a prototyping process is required to establish phase-specific temperature parameters that ensure consistent solder joint quality.

Post-Welding Procedures:
Following completion of welding, comprehensive inspection and testing must be performed:

1. Visual Inspection:

• Weld seam uniformity evaluation

• Surface smoothness assessment

• Detection of porosity or cracking

2. Electrical Performance Testing:

• Contact resistance measurement

• Insulation resistance verification
        For specialized applications, additional protective treatments may be       required:

• Insulating varnish application

• Conformal coating (e.g., moisture-resistant, fungus-resistant, corrosion-resistant       treatments)
        to enhance connector durability and environmental resilience.

Quality Assurance Compliance:
All processes must adhere to:

• IPC-A-610 Class 3 standards for electronic assemblies

• USB-IF compliance requirements

• IEC 60512-99-001 connector testing specifications

Application Fields

Laser welding for TYPE-C USB connectors is widely used in various electronic devices, such as smartphones, tablets, laptops, and earphones. In these devices, TYPE-C USB connectors are used to achieve functions like data transmission and charging. Laser welding technology ensures reliable connections between the connectors and circuit boards, improving the overall performance and stability of the devices. If you require samples, our company provides free prototyping services!
