Application of Laser Soldering Technology in the Field of Optical Communication

With the rapid advancement of communication technologies, these industries are demanding increasingly higher standards for soldering quality, precision, and efficiency. Traditional soldering methods can no longer meet the requirements of high-density soldering applications. Wuhan Songsheng Optoelectronic’s Constant-Temperature Laser Soldering System delivers an innovative solution through its contactless, high-precision soldering approach, empowering clients to secure leading positions in today's fiercely competitive market.

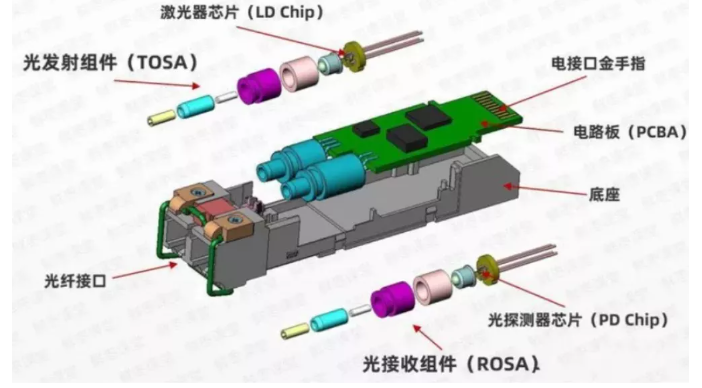

Structural Diagram of Optical Module in Optical Communication

The antenna, cable, and optical communication industries demand soldering processes with exceptional precision, minimal thermal impact, and superior reliability. For instance, in optical communications, fiber optic termination and optical device connections require high-precision soldering within extremely confined spaces.

For antenna and cable soldering, excellent conductivity is essential, along with the ability to withstand harsh operating environments while maintaining long-term stable connections. Traditional soldering methods often cause thermal damage, leading to component failure or poor connections that degrade signal transmission quality.

Wuhan Songsheng Optoelectronic's laser soldering technology, with its unparalleled thermal control and precision welding capabilities, has become the ideal solution for these critical applications.

Specific Applications of Laser Soldering Technology in Antenna Manufacturing

In antenna production, soldering joints are typically minute in size and require minimal thermal impact on antenna materials during the soldering process. Laser soldering technology, with its high precision and superior thermal control characteristics, perfectly meets these critical welding requirements in antenna manufacturing.

Wuhan Songsheng Optoelectronic's Constant-Temperature Laser Soldering System achieves precise soldering for antenna terminations while effectively preventing thermal damage during the process. This ensures optimal electrical conductivity and maintains superior signal transmission performance of the antennas.

1. Automotive Antenna Soldering
Automotive antenna soldering demands exceptional high-temperature resistance and vibration-proof capabilities. Laser soldering technology enables precision welding without damaging antenna components, ensuring reliable performance even in harsh operating environments.

2. 5G Antenna Soldering
With the widespread adoption of 5G communication, antenna precision requirements have become more stringent. Laser soldering guarantees high-efficiency antenna welding, significantly improving signal transmission quality and extending equipment service life.

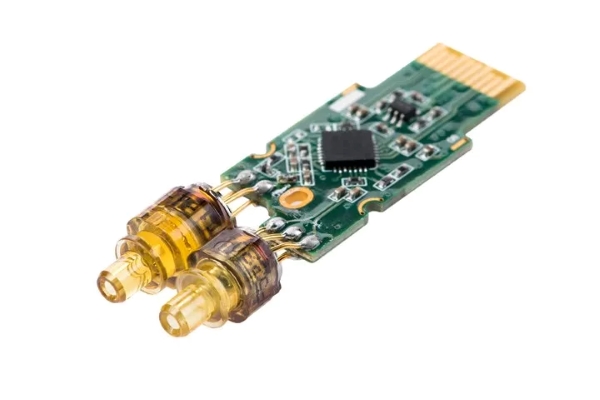

Structural Diagram of Wireless Communication Module in Optical Communication

Specific Applications of Laser Soldering Technology in Cable Manufacturing

Cable production imposes extremely stringent requirements on soldering processes, demanding not only superior conductor connection quality but also compliance with high-temperature and high-voltage insulation layer specifications. Songsheng Optoelectronic's laser soldering technology, featuring contactless operation and minimal thermal impact, is ideally suited for precision cable welding applications.

1. High-Voltage Cable Applications
High-voltage cables require solder joints with exceptional pressure resistance. Laser soldering ensures robust cable connections while eliminating the thermal damage risks associated with conventional welding methods.

2. Optoelectronic Composite Cable Applications
Integrating both optical fibers and electrical conductors, optoelectronic composite cables demand high-density, precision soldering. Songsheng Optoelectronic's laser soldering technology enables micron-level operation accuracy, guaranteeing both mechanical connection strength and stable signal transmission performance.

Specific Applications of Laser Soldering Technology in Optical Communication

The optical communication industry demands soldering processes with exceptional precision and stability to ensure accurate and reliable signal transmission. Fiber optic and photonic device connections often require operations in extremely confined spaces. Leveraging its non-destructive soldering characteristics, laser soldering technology perfectly meets the industry's high-density interconnection requirements.

1. Fiber Optic Termination Soldering
Fiber optic termination requires ultra-high soldering precision. Songsheng Optoelectronic's laser soldering process achieves micron-level fiber alignment accuracy, effectively minimizing signal loss and enhancing transmission efficiency of optical communication equipment.

2. Photonic Device Packaging
Optical communication components typically consist of multiple micro-elements. The precision temperature control and sub-millimeter soldering capability of laser technology ensure flawless interconnections while preventing thermal damage to sensitive components, making it ideal for hermetic packaging of photonic devices.

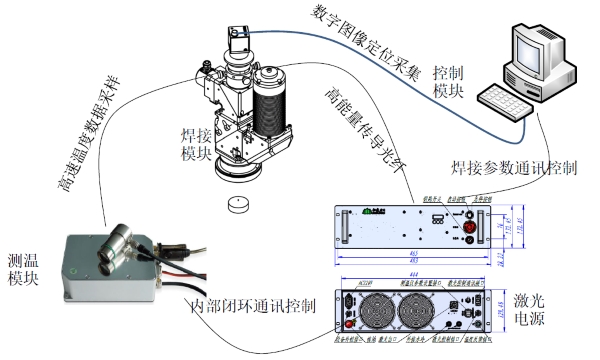

Diagram of Songsheng Optoelectronic Laser Constant-Temperature Soldering System

The Songsheng Optoelectronic Laser Constant-Temperature Soldering System consists of a real-time temperature feedback system, CCD coaxial alignment system, and 976/980nm constant-temperature semiconductor laser. Featuring an innovative PID online temperature regulation feedback system, it effectively controls constant-temperature soldering with real-time high-precision temperature monitoring of the soldering target, ensuring exceptional soldering yield and precision. This system is particularly suitable for temperature-sensitive, high-precision soldering applications such as optical communication modules, rigid-flex optical circuit boards, and photonic device pin connectors.

Features of Songsheng Optoelectronic Constant-Temperature Laser Soldering System

1. High-precision laser processing with minimum spot diameter of 0.1mm enables soldering of micro-pitch mounted devices and chip components.

2. Localized short-duration heating minimizes thermal impact on substrates and      peripheral components. Customizable heating profiles for different component lead types ensure consistent soldering quality.

3. Eliminates soldering iron tip consumption and heater replacement requirements,      enabling highly efficient continuous operation.

4. Superior laser processing accuracy with micron-level laser spot control. Program-controlled processing time/power delivers precision far exceeding conventional soldering irons. Capable of soldering in spaces under 1mm.

5. Multi-optical-path coaxial design with CCD positioning provides WYSIWYG (What You See Is What You Get) operation without repeated vision calibration.

6. Non-contact processing eliminates mechanical stress from physical contact and prevents electrostatic discharge.

7. Laser as green energy source offers the cleanest processing method - consumable-free, simple maintenance and user-friendly operation.

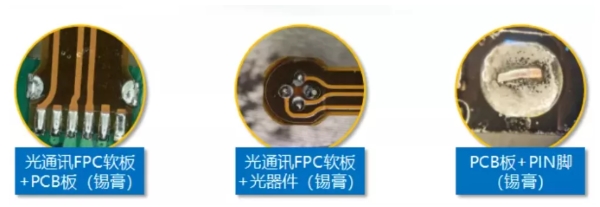

Precision Soldering Diagram for Optical Communication Components

Future Development Trends

With the continued advancement of communication technologies, the antenna, cable, and optical communication industries will demand even more stringent soldering requirements. Laser soldering technology, with its precision and non-destructive characteristics, is poised to play an increasingly vital role in these sectors.

Wuhan Songsheng Optoelectronic remains committed to technological innovation and system performance enhancement to meet future market demands. We will continue to provide customers with higher-efficiency laser soldering solutions that address evolving industry challenges.
