The automotive DC control module, or DC power control module, is a critical component in vehicles. The laser soldering process for automotive DC (Direct Current) control modules is a high-precision, high-reliability electronic manufacturing technology used to connect various electronic components and circuit boards, ensuring stable operation of the DC control module in extreme environments.

The DC control module primarily manages the vehicle's DC power supply. In automobiles, DC power is essential, providing electricity to various systems such as lights, audio, and air conditioning. The DC control module ensures these devices receive stable DC power when needed while maintaining power efficiency and operational safety.

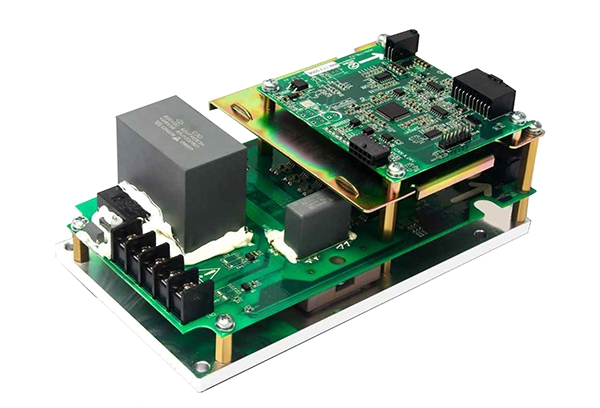

Illustration of Automotive DC/AC Auxiliary Motor Controller Module

The DC control module typically contains electronic components and circuits for regulating and controlling DC power voltage and current. It automatically adjusts power output according to vehicle demands and load variations to maintain stable voltage and current. Additionally, the DC control module monitors power supply status and implements protective measures when abnormalities occur, preventing equipment damage.

Applications of Laser Soldering in Automotive DC Control Module Solutions:

1. High-Precision Soldering
   Laser soldering utilizes high-energy-density laser beams for precise micro-solder-joint heating, enabling rapid solder melting and high-quality joint formation. This proves particularly advantageous for soldering      precision electronic components, integrated circuits, and connectors in automotive DC control modules.

2. Minimal Heat-Affected Zone
   Precise laser energy control and rapid heat transfer significantly reduce thermal impact on surrounding components and circuit boards, preventing heat-induced damage or performance degradation.

3. Non-Contact Soldering
   The contact-free process eliminates mechanical stress associated with conventional soldering methods, making it ideal for stress-sensitive automotive electronics.

4. Process Flexibility
   Laser soldering systems allow parameter adjustments for diverse solder materials and complex joint structures, including various SMD components, BGA chips, and fine wire connections.

5. Enhanced Production Efficiency & Quality
   Automated laser soldering enables high-speed continuous production, reduces manual errors, and improves product reliability and consistency.

Songsheng Optoelectronics Laser Soldering System

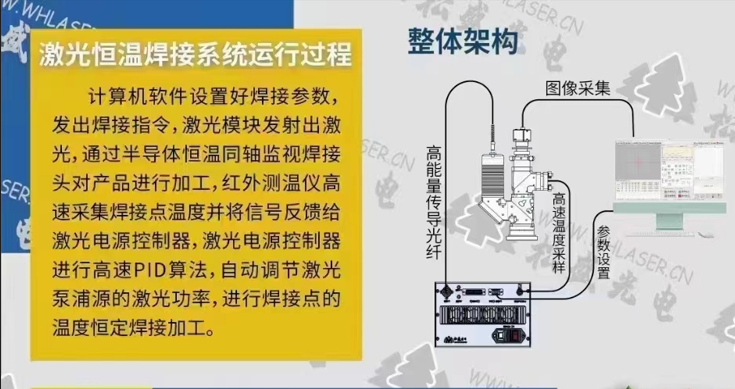

The Songsheng Optoelectronics laser soldering system integrates a multi-axis servo module, real-time temperature feedback system, CCD coaxial positioning system, and semiconductor laser. Through years of welding process development, Songsheng has independently developed intelligent soft soldering software supporting multiple file formats. The proprietary PID online temperature regulation feedback system effectively maintains constant-temperature soldering, ensuring high yield rates and precision.

This versatile product is suitable for both inline production and standalone operation, offering the following advantages:

1. Non-contact soldering eliminates mechanical stress and minimizes thermal effects.

2. Optional multi-axis intelligent work platform accommodates complex precision soldering processes.

3. Coaxial CCD camera positioning and monitoring system provides clear solder joint visualization and real-time alignment correction, ensuring precision and automated production.

4. Proprietary temperature feedback system directly controls solder joint temperature while displaying real-time temperature curves to guarantee soldering quality.

5. Four-point coaxial alignment (laser, CCD, temperature measurement, and indicator light) solves multi-optical path alignment challenges and eliminates  complex calibration.

6. Achieves 0.2mm minimum solder joint diameter with 99% yield rate and ultrafast single-point soldering.

7. X/Y/Z-axis configuration adapts to diverse component soldering for broader applications.
