Application of Laser Soldering Technology in Smart 3C Industry

Application of Laser Soldering Technology in Smart 3C Industry

As is widely recognized, smart 3C products - encompassing computers, communication devices, and consumer electronics - have become increasingly prevalent in modern society and households due to their safety, convenience, efficiency, speed, and intelligent features. With the advent of the 5G era, smart 3C electronic products such as VR devices, smart glasses, visual medical equipment, wearable devices, and autonomous driving systems are poised to enter a new phase of growth.

The ongoing miniaturization and precision enhancement of smart 3C products have progressively raised the requirements for soldering in electronic component assembly. Traditional soldering methods are increasingly inadequate to meet the demands of high-precision, non-destructive, and rapid production processes.

Illustration of Smart 3C Products

Laser soldering technology has become the ideal choice for the 3C industry due to its non-contact operation, highly concentrated heat, and precise solder joint capabilities. Particularly in manufacturing devices like smartphones, tablets, and smartwatches, laser soldering enables reliable connections for precision components, reducing defect rates while enhancing product lifespan.

Specific Applications of Laser Soldering in Smart 3C Industry

1. Smartphone Manufacturing
    The technology is applied in welding precision components such as camera      modules, speakers, and microphones. These components demand exceptionally      high welding quality, which laser soldering delivers through its high-precision capabilities, ensuring both stability and functionality.

2. Wearable Devices
   Smartwatches and earbuds require extreme miniaturization and lightweight      design. Laser soldering performs precision welding in confined spaces, eliminating the bulk and potential damage caused by conventional methods while improving electromagnetic interference resistance.

3. Tablet Computers
   Widely adopted for welding touchscreens and chip modules, laser soldering      guarantees product stability and extended service life, meeting premium users' demands for performance and quality.

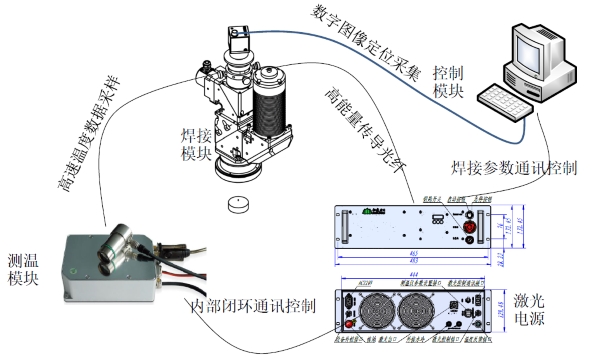

Songsheng Optoelectronics Laser Constant-Temperature Soldering System Illustration

The Songsheng Optoelectronics Laser Constant-Temperature Soldering System integrates three core technologies: real-time temperature feedback, CCD coaxial positioning, and 976/980nm constant-temperature semiconductor laser. Featuring an innovative PID online temperature regulation feedback system, it achieves precise temperature control during soldering with real-time high-precision temperature monitoring, ensuring superior soldering yield and accuracy. This system is particularly suitable for temperature-sensitive precision soldering applications such as micro speakers/motors, connectors, and camera modules.

Key Features of Songsheng Optoelectronics Constant-Temperature Laser Soldering System

1. High Precision Processing

• Minimum laser spot diameter: 0.1mm

• Capable of micro-pitch component mounting and chip soldering

2. Localized Heating with Minimal Thermal Impact

• Short-duration localized heating minimizes thermal effect on substrates and adjacent components

• Customizable heating profiles for different lead types ensure consistent soldering       quality

3. No Consumable Parts

• Eliminates soldering iron tip replacement

• Enables high-efficiency continuous operation

4. Micron-Level Precision

• Laser spot positioning at micron-level precision

• Program-controlled processing time/power

• Capable of soldering in spaces under 1mm

5. Coaxial Multi-Optical Path & CCD Positioning

• "What You See Is What You Get" visual alignment

• Eliminates repeated positioning calibration

6. Non-Contact Processing

• No mechanical stress induced by contact soldering

• Electrostatic-free operation

7. Green Energy Solution

• Clean processing technology

• No consumables required

• Low maintenance with user-friendly operation

Application Prospects in Smart 3C Industry

The smart 3C industry is projected to maintain rapid growth in coming years, driven by technological innovation and market demand. To remain competitive, manufacturers must continuously enhance product performance and service quality. Wuhan Songsheng Optoelectronics will continue advancing laser soldering technology, improving system capabilities to promote wider adoption in 3C product manufacturing.
