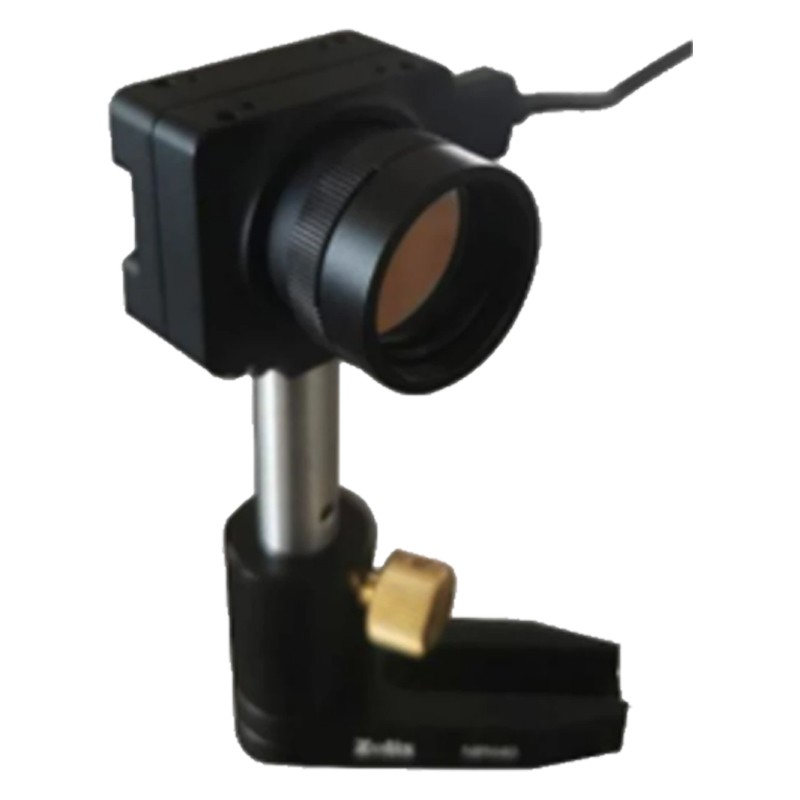

Laser Spot Analyzer
Product description
Laser analysis spot analyzers enable laser spot inspection and testing applications. The laser analysis Spot Analyzer provides a customized, integrated design solution for beam quality analysis and supports multi-application development. The Laser Analysis Spot Analyzer is an integrated beam analyzer designed with an attenuation scheme to measure spots as small as 40 μm in diameter, supporting real-time exposure and gain adjustment.The system samples and analyses a continuously visible laser spot to obtain the spot center, radius, elliptic ratio, etc., and displays the light intensity and energy field in two and three dimensions.
Main application
Laser production
Maintenance and laser applications
Optics Quality Inspection
Laser Cavity Mirror Adjustment
External optical collimation
Fiber alignment coupling analysis, etc.
Product specifications
Product Model | LA-V001 | pixel size | 3.45μmx3.45μm |
Size of target surface | 1/1.8" | frame rate | 6-12 fps @ 2048x1536 effective pixels |
spectral response | 190-1100nm | Minimum system dynamic range | 47dB |
Sensitive Size | 7.1mmWx5.4mmH | connector | USB3.0 |
effective pixel | 2048x1536 | standard software | Beamfiler2022 |
