 Laser Soldering Technology: What Are the Main Applications in Circuit Board Products?

Modern industrial manufacturing is rapidly developing towards intelligent production. To achieve richer smart functions, products require support from various integrated circuit components. Without these essential chip-based infrastructure devices, all intelligent manufacturing would be nothing but empty talk. So what are the main applications of circuit board products that strongly support industrial production today?

1. Application in Computer Products

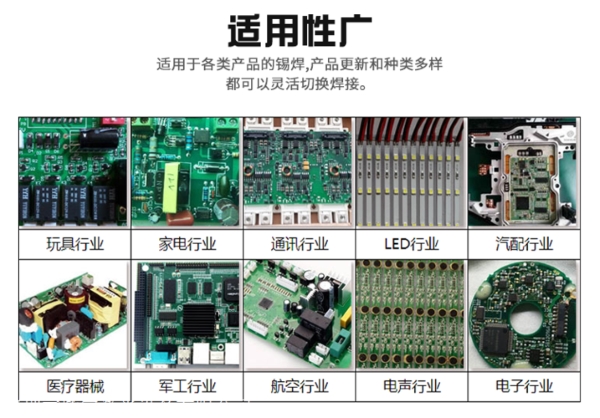

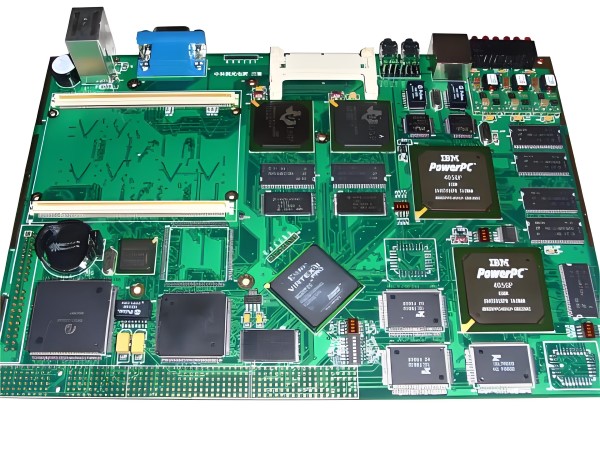

Circuit boards were originally designed specifically as integrated modules for computer products. The motherboard used in computers is a typical example of such an integrated module. Critical computer components like the processor, memory, and hard drives all require motherboard support to function properly. In fact, whenever processors undergo generational upgrades, new motherboard chipsets must be developed to create compatible motherboards that can fully utilize the processor's capabilities. This makes computer products one of the primary applications of integrated circuit boards.

2. Application in Mobile Phone Products

Mobile phones have now become high-frequency-use electronic devices for many consumers, and for numerous users, their value has nearly replaced traditional home computers. The demand for circuit boards in mobile phones is even more critical, as the integrated boards used in phones need to be more compact and precise. Only with such advanced circuit boards can smartphones incorporate more intelligent features.

3. Application in Home Appliances

The home appliance industry has now entered the era of intelligence, where various advanced functions enable appliances to provide more reliable services for households. Products such as refrigerators, televisions, and washing machines all require circuit boards, and higher-end appliances demand even more sophisticated integrated boards. This makes home appliances another major application field for integrated circuit boards.

Circuit boards are miniaturized integrated modules that serve as the "soul" of electronic products, enabling richer functionalities. Whether for the declining PC market, increasingly ubiquitous mobile devices, or indispensable household appliances, there remains strong practical demand for these integrated modules. During circuit board production, multiple processes are required, often involving assembly line soldering.

Currently, PCB and FPC manufacturers primarily use wave soldering, reflow soldering, hand soldering, and automated iron soldering methods. These techniques essentially provide a heating environment to melt solder wire or paste, reliably connecting surface-mounted components to PCB pads through solder alloys. However, these traditional methods often leave residues on board surfaces, causing issues like contamination, flammability, corrosion, internal layer voids, cold joints, and bridging. Some components are particularly prone to deformation, damage, or failure, making PCB rework excessively complex and difficult.

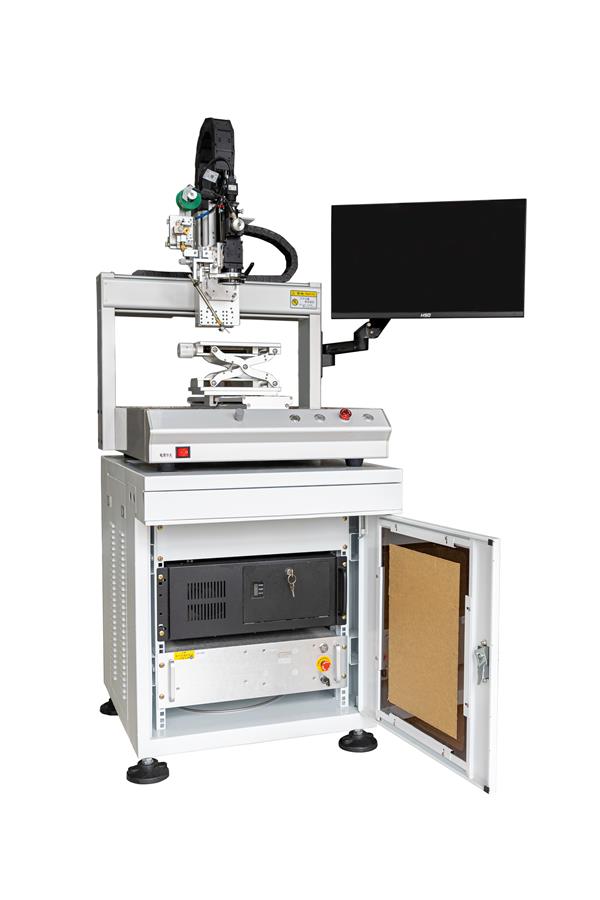

These persistent limitations of conventional soldering have long troubled most circuit board manufacturers. The advent of laser soldering technology has broken through these constraints. While not as fast as reflow soldering in terms of efficiency, it effectively addresses the pain points of traditional methods. Automated laser soldering machines, exemplified by  Songsheng Optoelectronics' systems, employ highly automated and precise control systems combined with laser technology featuring minimal heat-affected zones and highly concentrated energy. This approach reduces PCB soldering voids, improves efficiency, eliminates multiple adverse factors in the soldering process, ensures component integrity, and guarantees soldering speed, efficiency, and stability - achieving precise, omnidirectional soldering.

Characteristics of Laser Soldering Systems

(1) Minimized Heat Input: Requires significantly less heat input, resulting in a small heat-affected zone with limited metallurgical transformation range and reduced thermal deformation.

(2) Precise Welding Head Positioning: Excellent dynamic performance maintains stable precision even during high-speed movement. Utilizes rack-and-pinion or ball screw transmission mechanisms driven by servo motors for welding head motion control.

(3) Welding Stability: Mature laser welding technology achieves welding linear accuracy ≤ ±0.02mm. Electromagnetic clamping fixtures ensure workpiece stability during welding. Unique water-cooling circulation system enables rapid cooling, complemented by a welding tracking system to guarantee consistent quality.

(4) Electrode-Free Operation: Eliminates concerns about electrode contamination or damage. As a non-contact welding process, it minimizes equipment wear and deformation.

(5) Precise Beam Focusing: The laser beam can be focused on extremely small areas, enabling welding of miniature components with close spacing.

(6) High Production Efficiency: Features independent loading/unloading mechanisms and welding head movement systems. Dual-station design allows simultaneous welding and material handling, significantly improving equipment utilization.

(7) Maintenance-Free Optical Path: Fully enclosed flexible optical path using single fiber connection from laser source to welding head, requiring no maintenance.

(8) Automation Compatibility: Easily integrated into automated high-speed welding systems, with options for digital or computer control.
